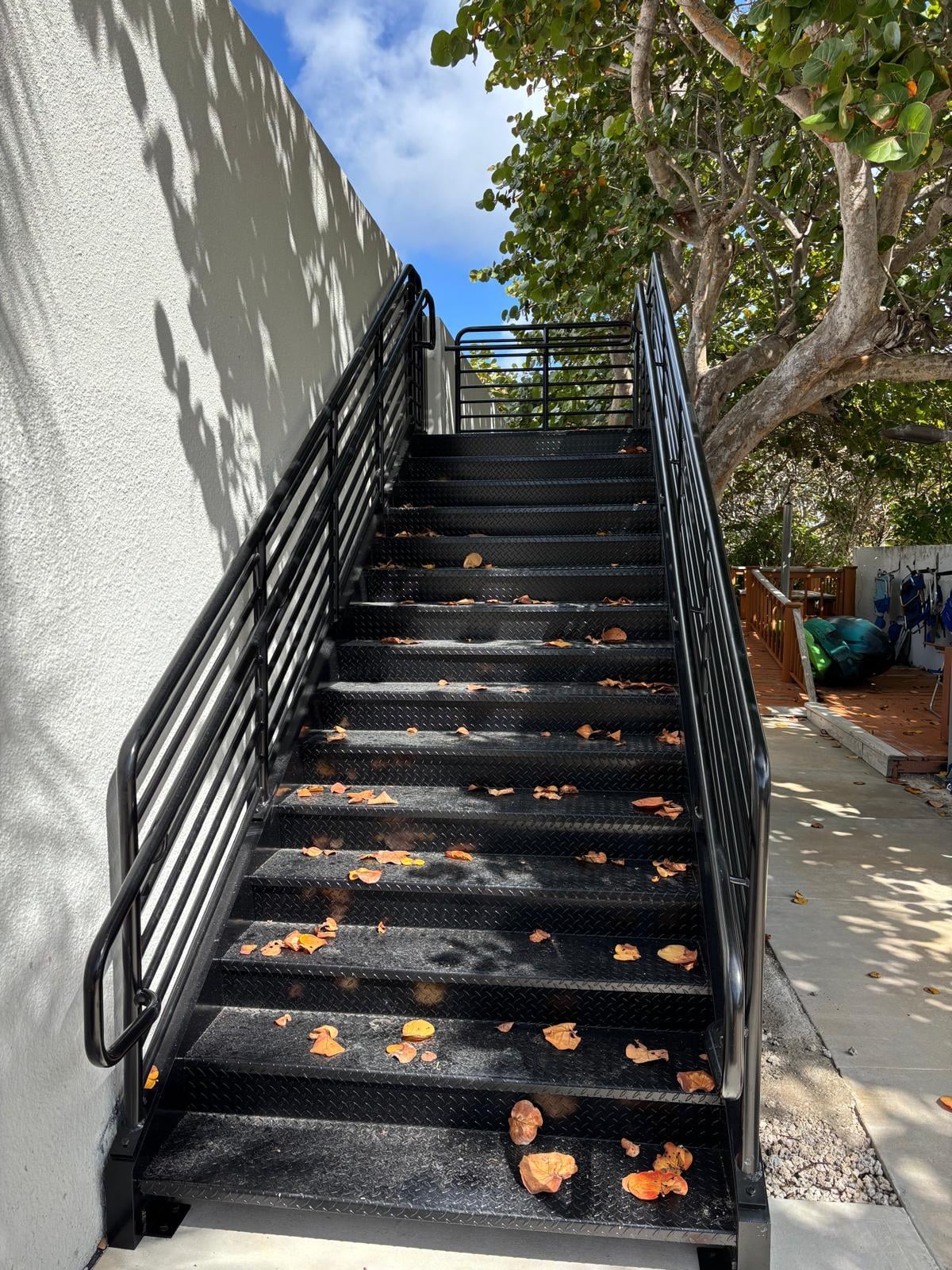

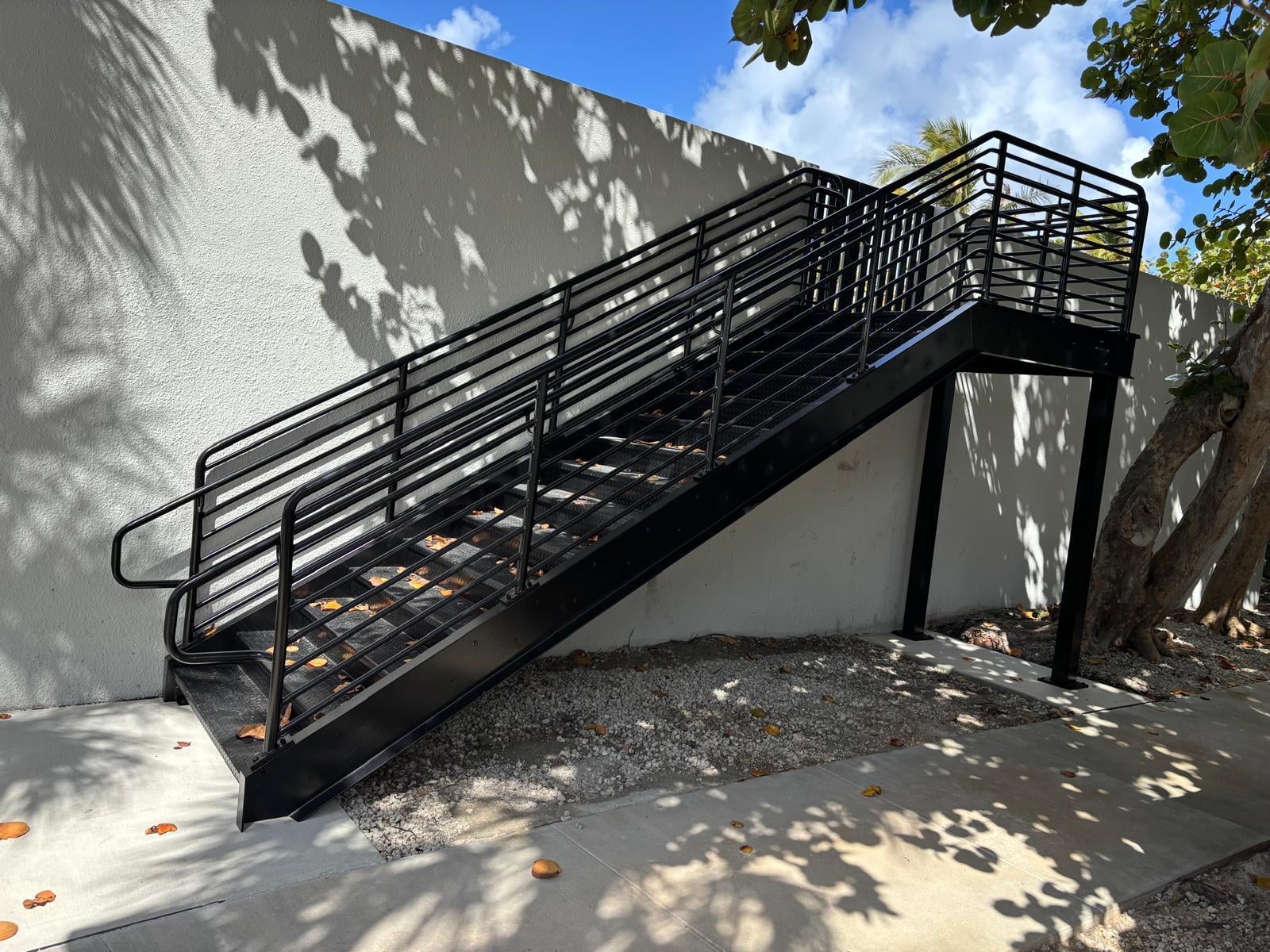

Exterior steel stair with custom railing system, built and installed in Florida. Engineered with a fully detailed fabrication package; the installation drawings reproduced here guided the on-site crew.
Built · real installation
In the field

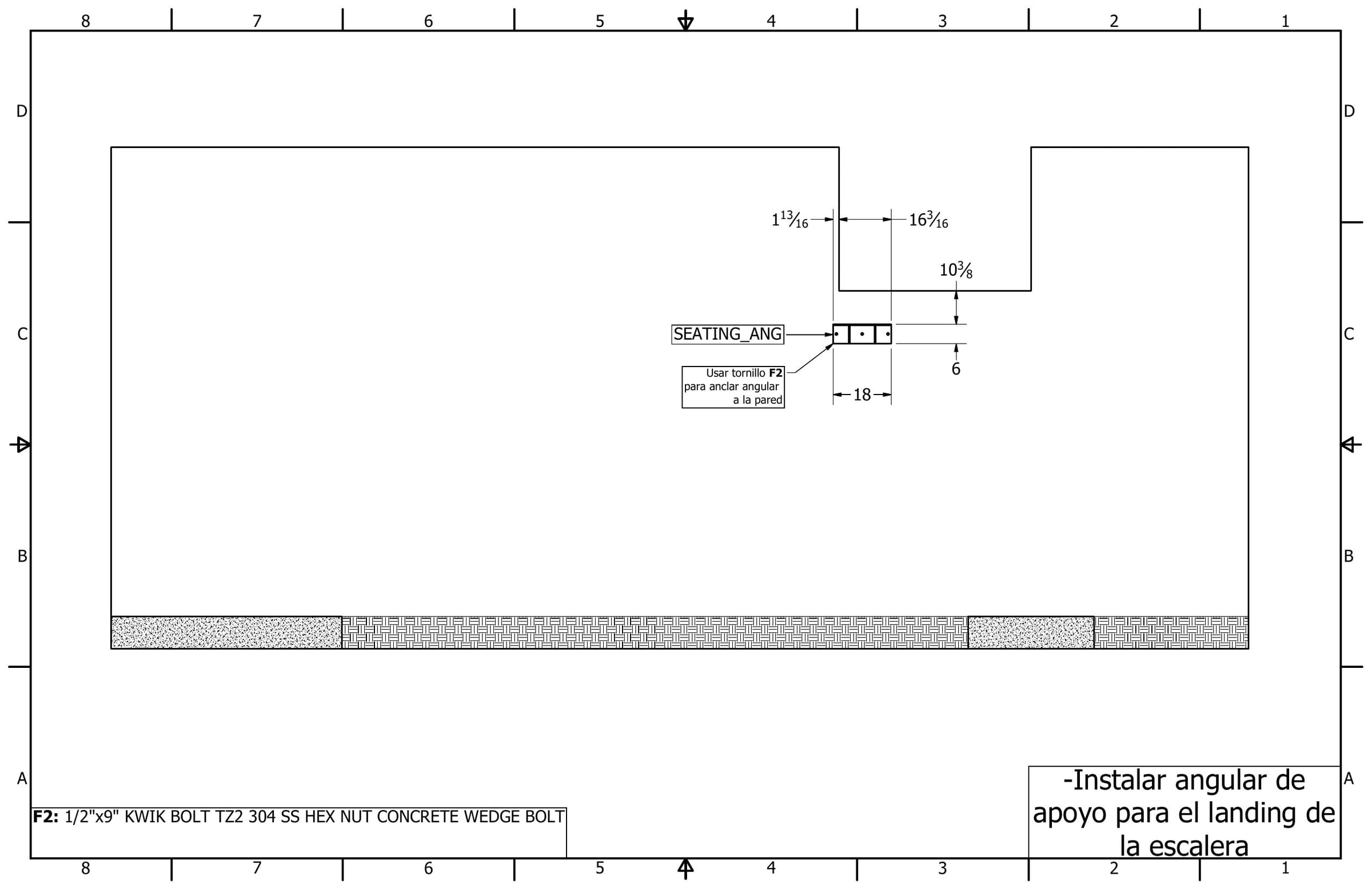

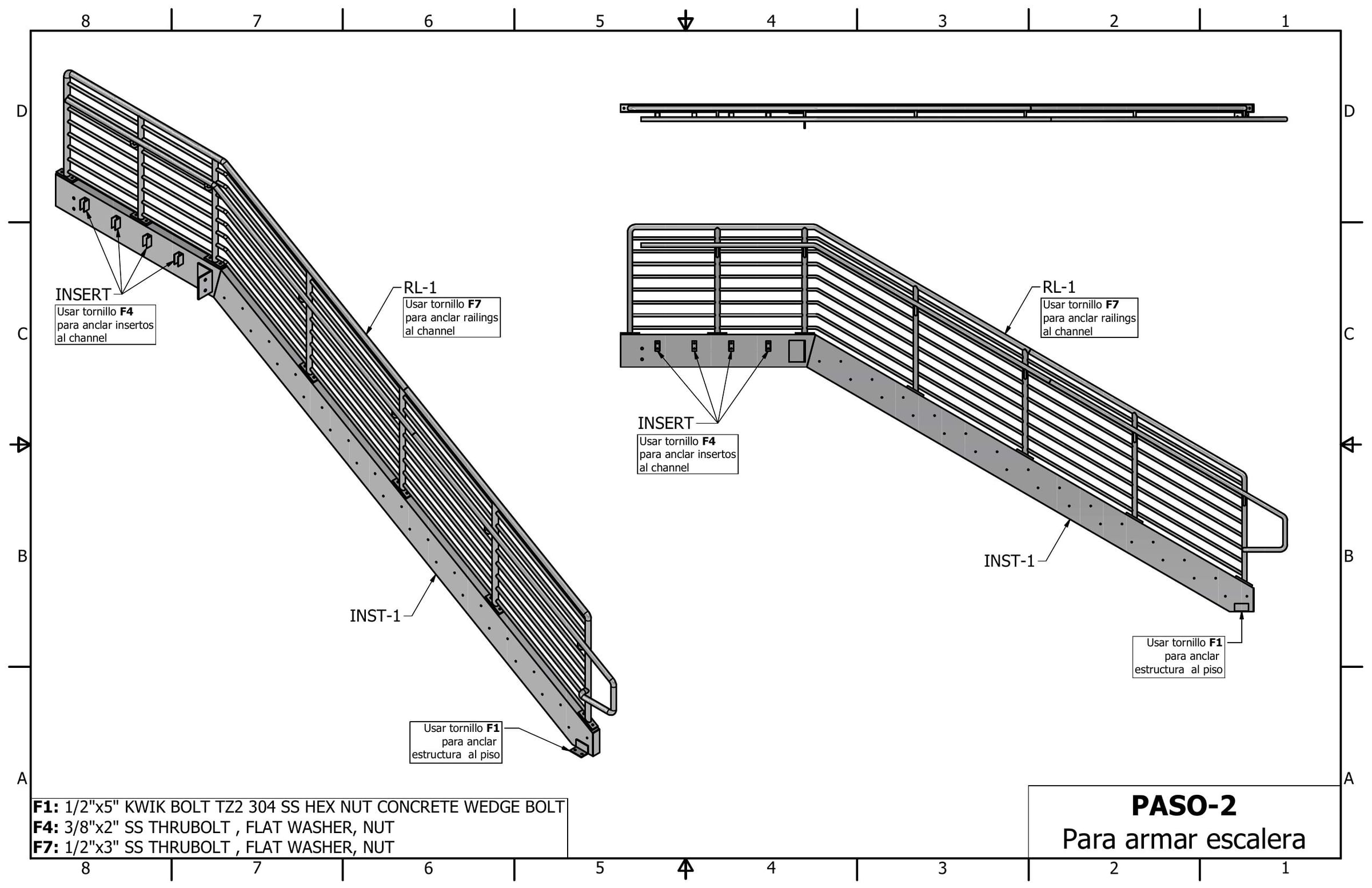

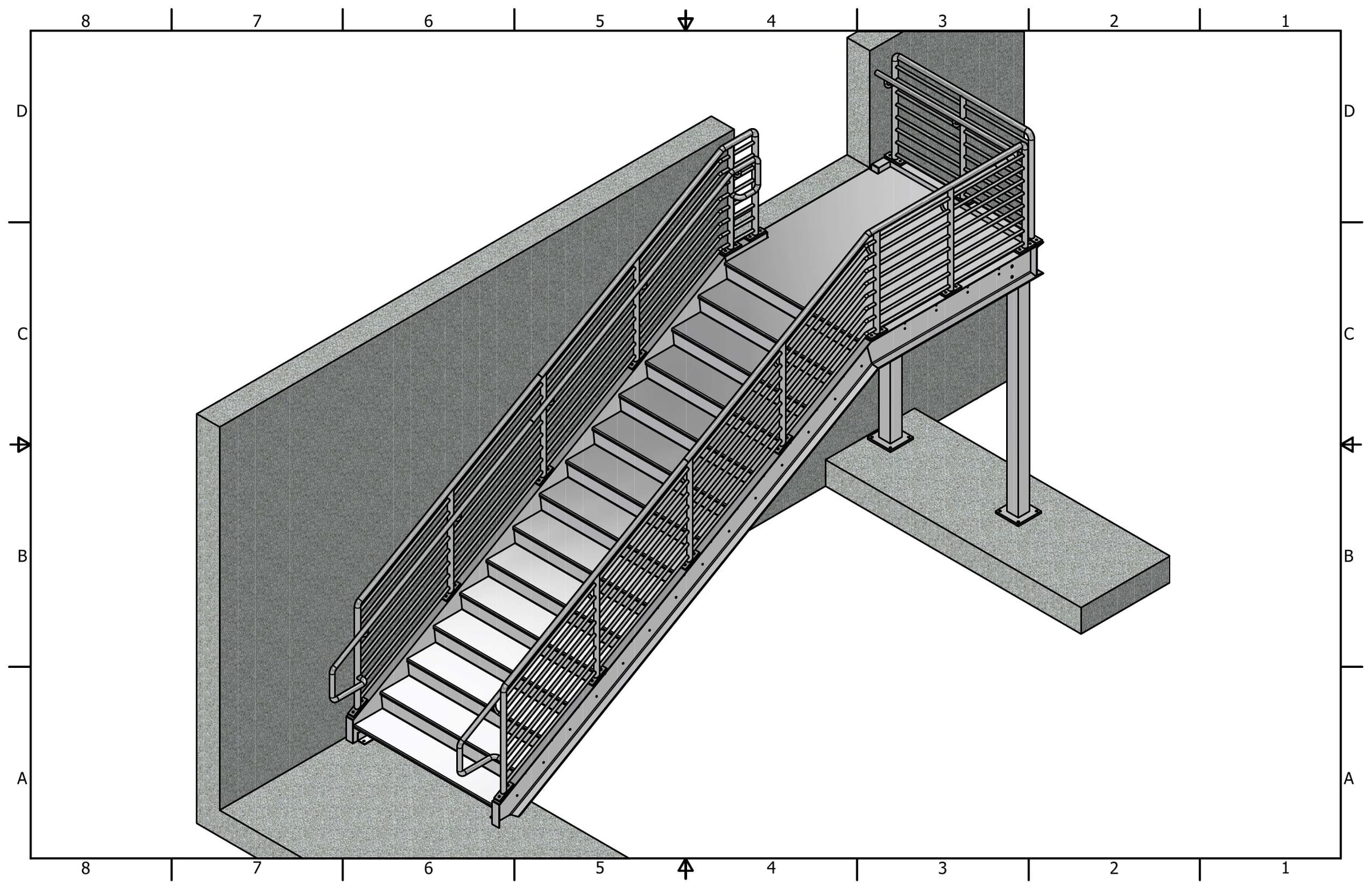

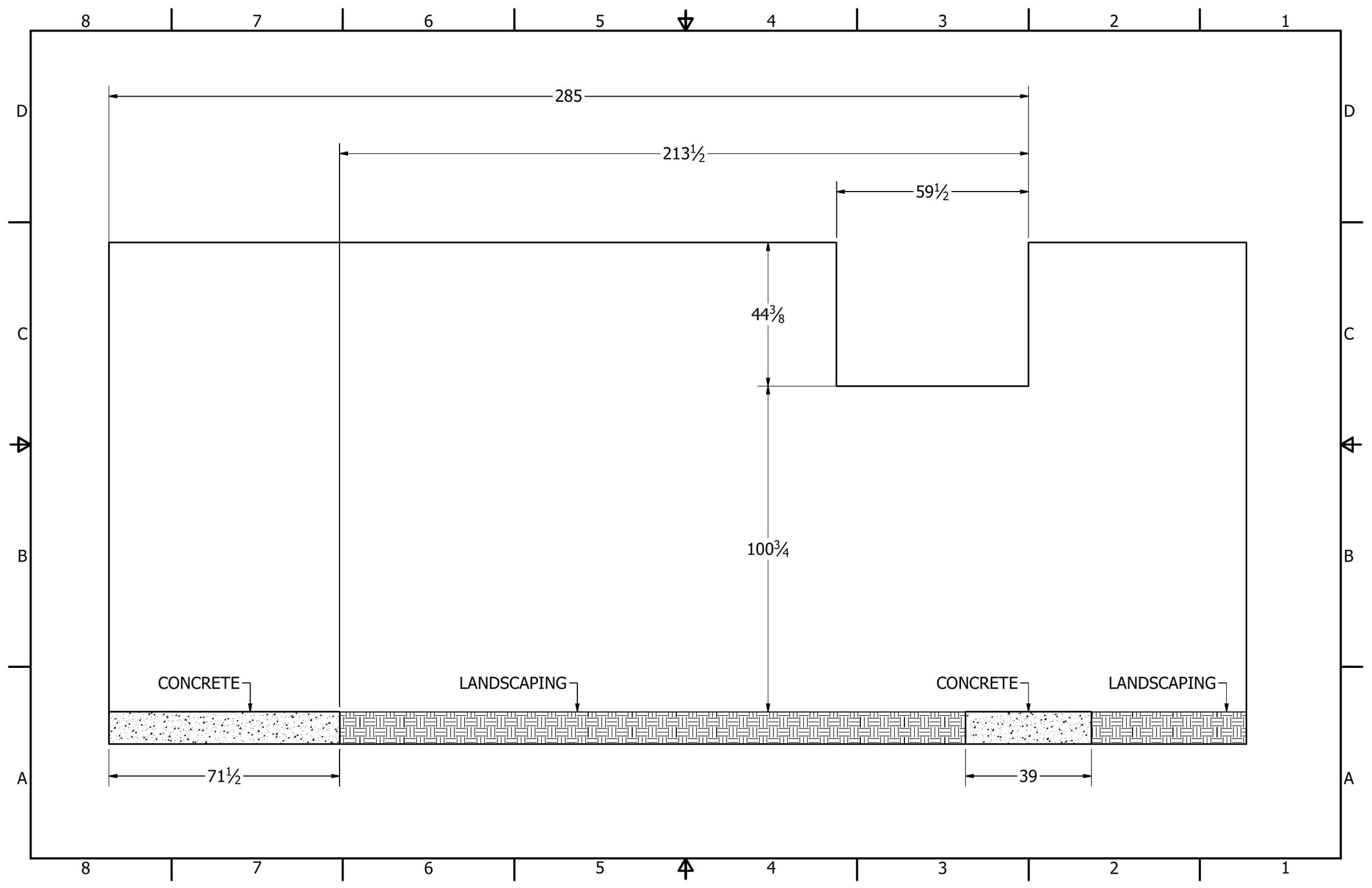

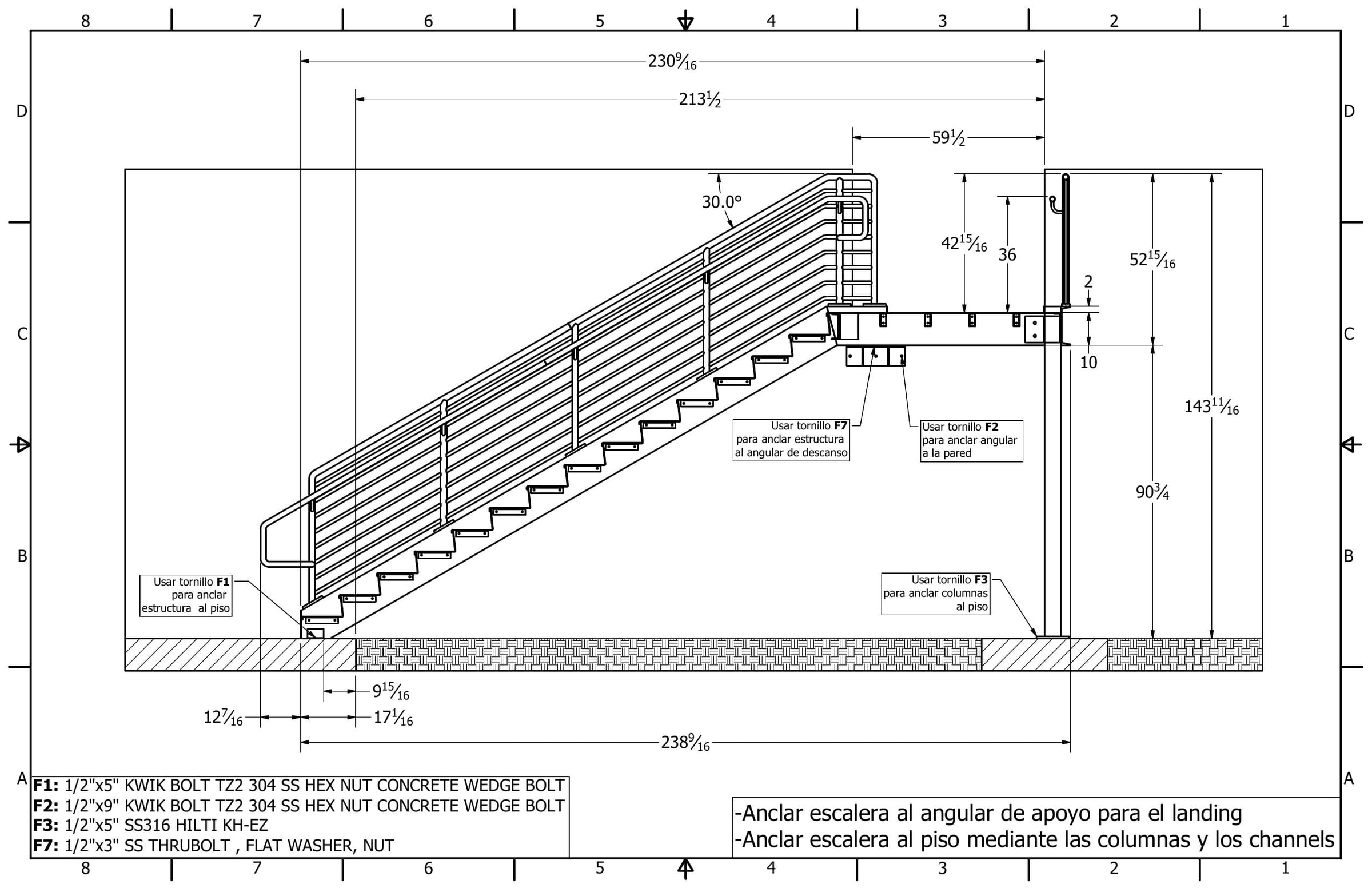

Installation drawings · 10 sheets
Documentation
Installation drawings shown.

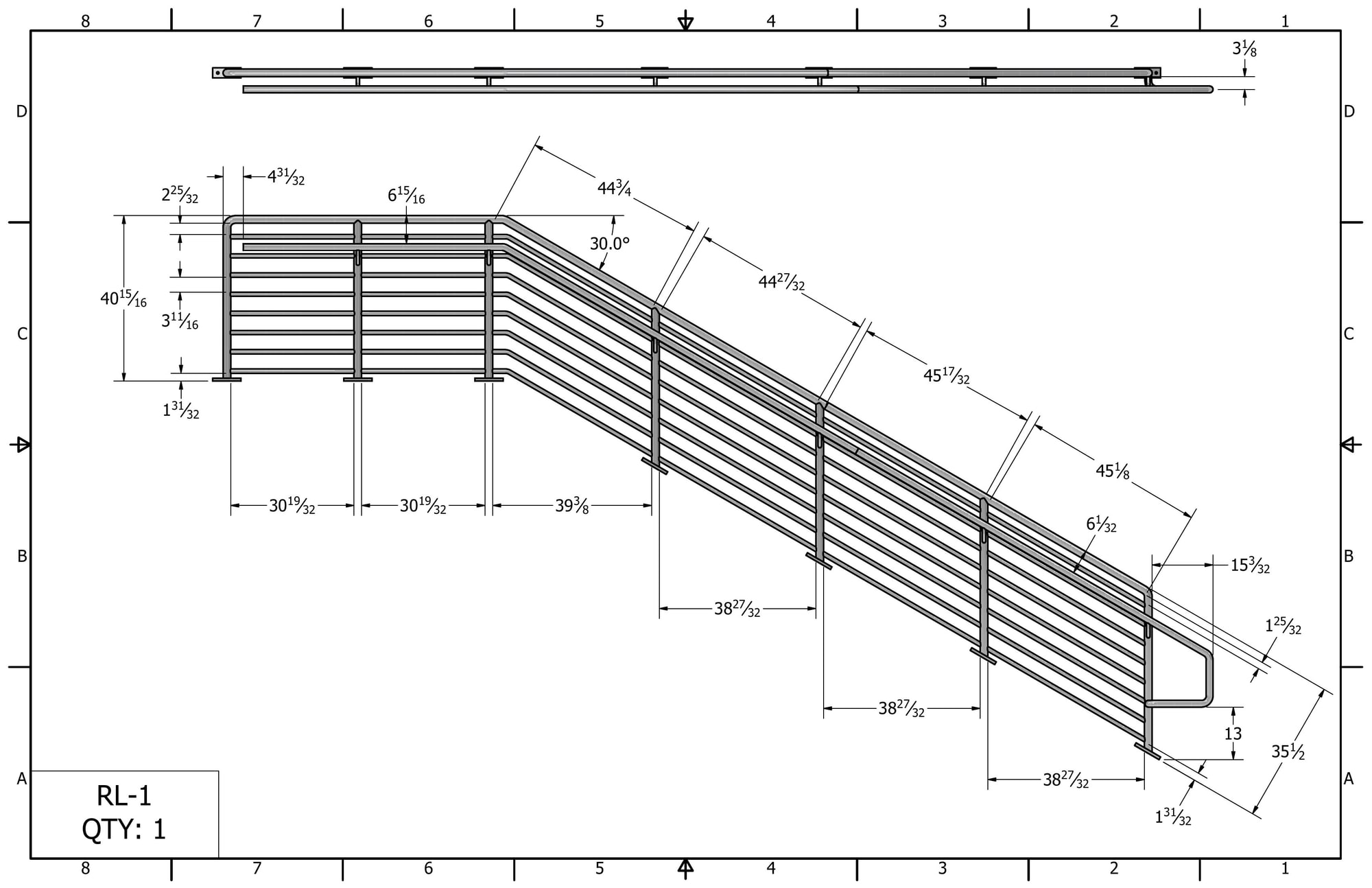

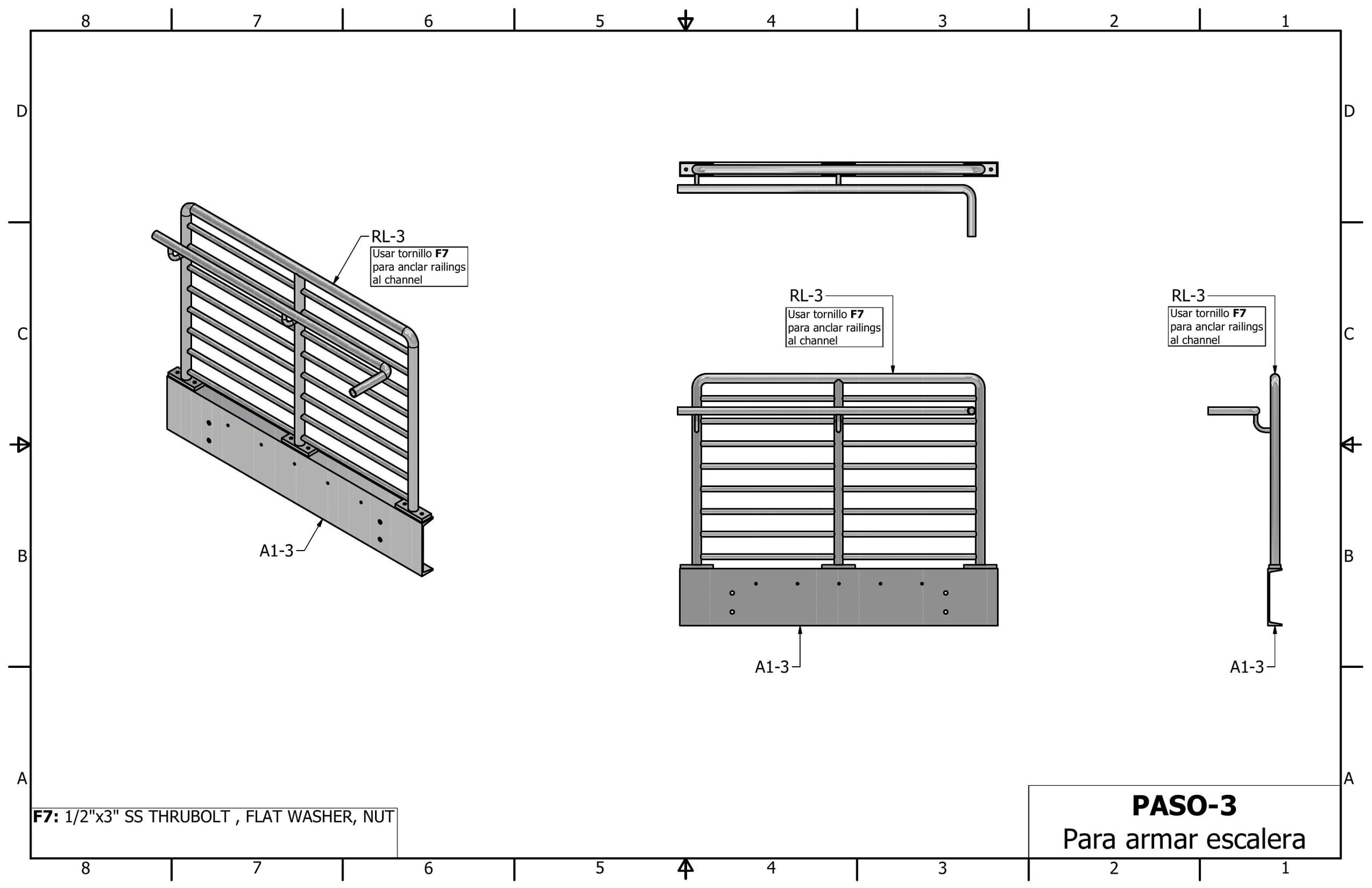

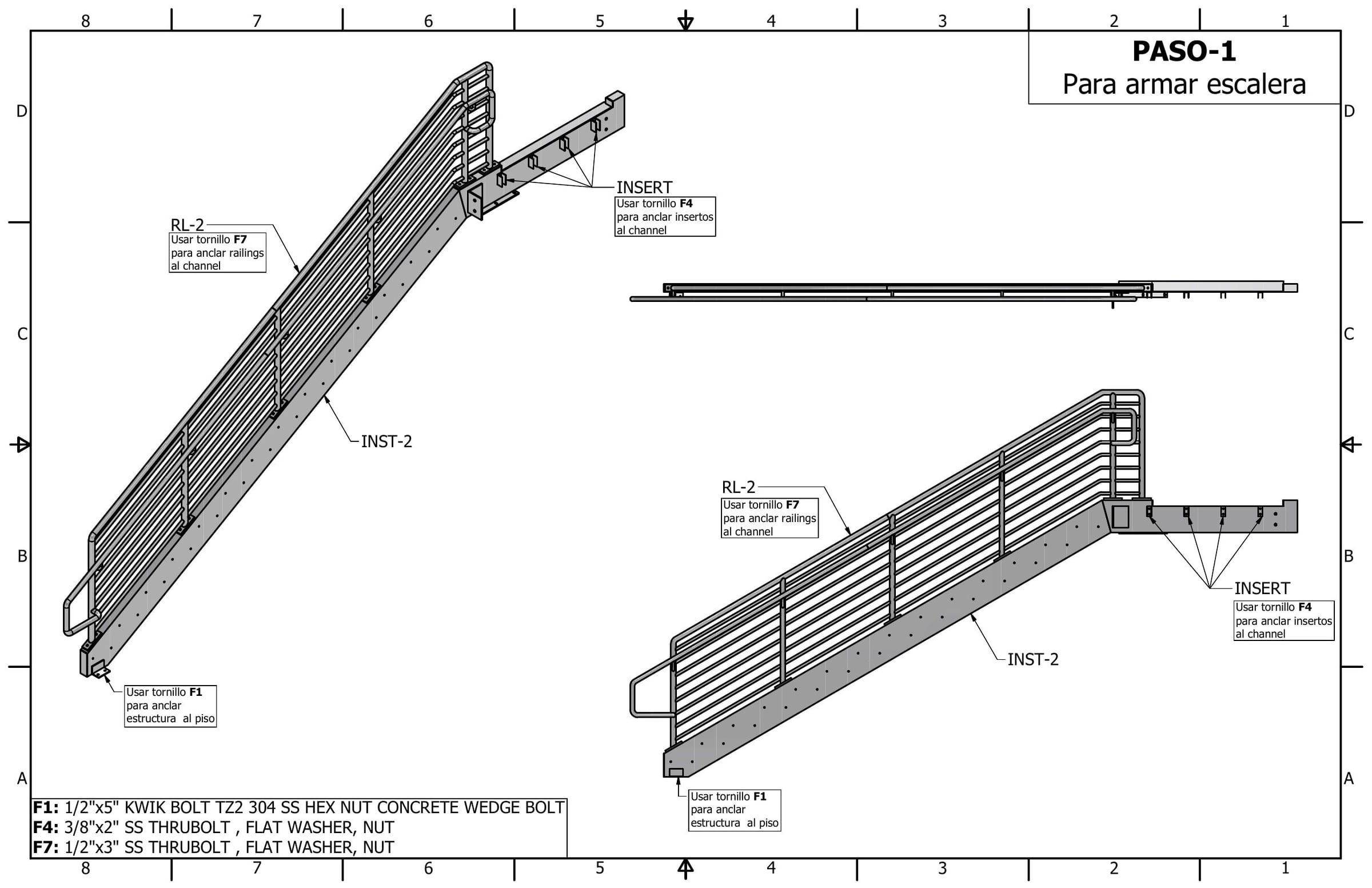

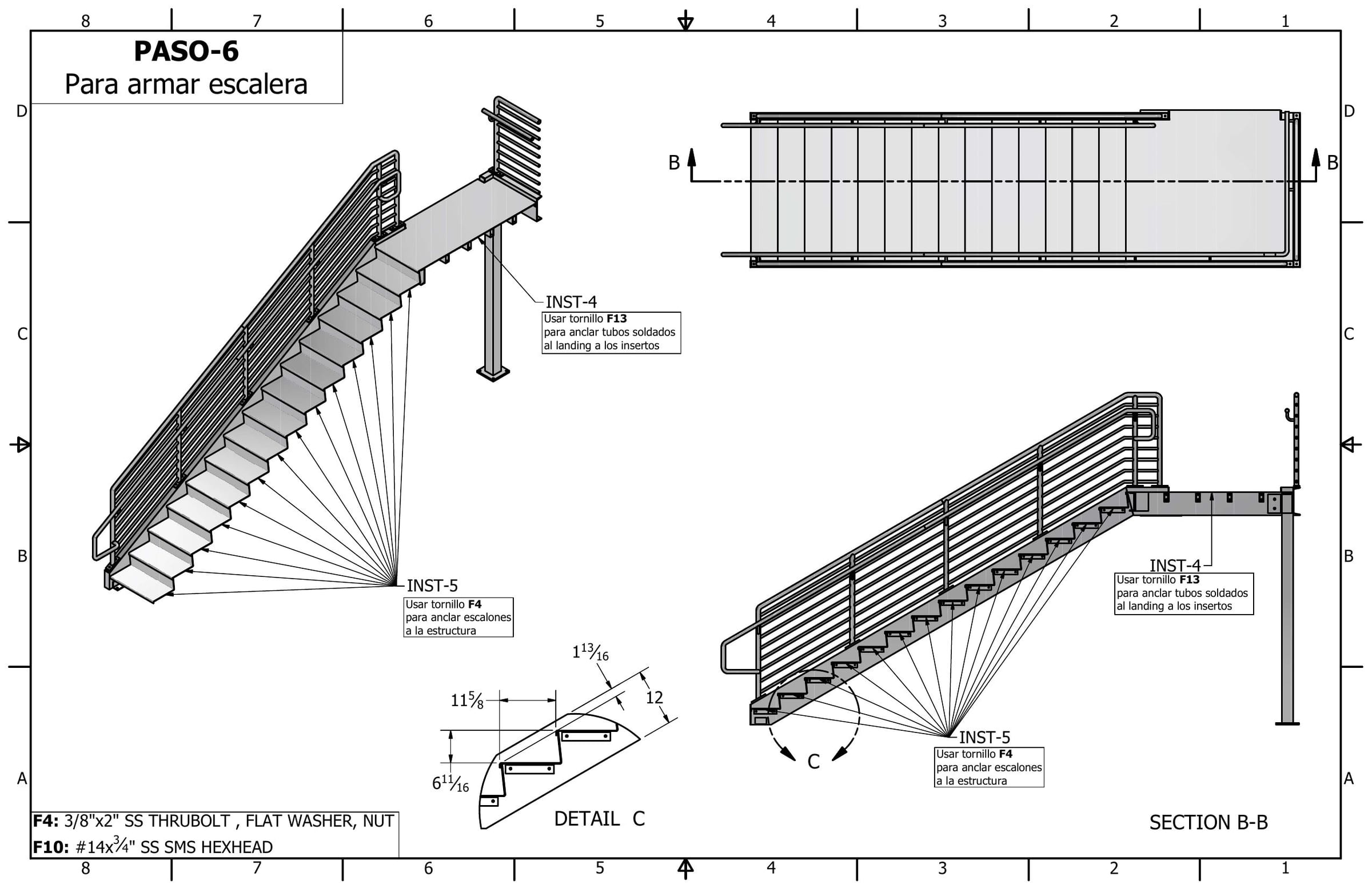

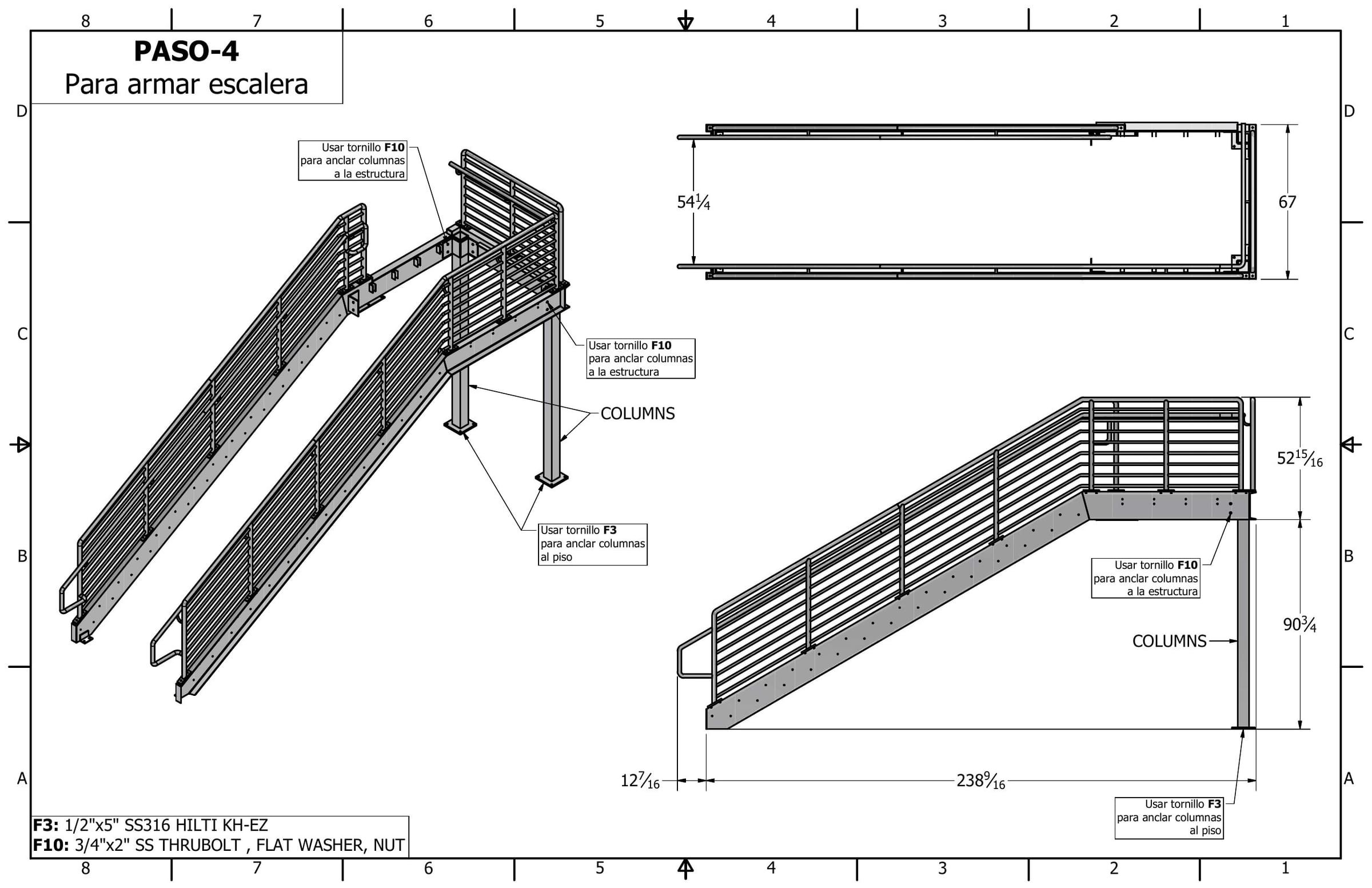

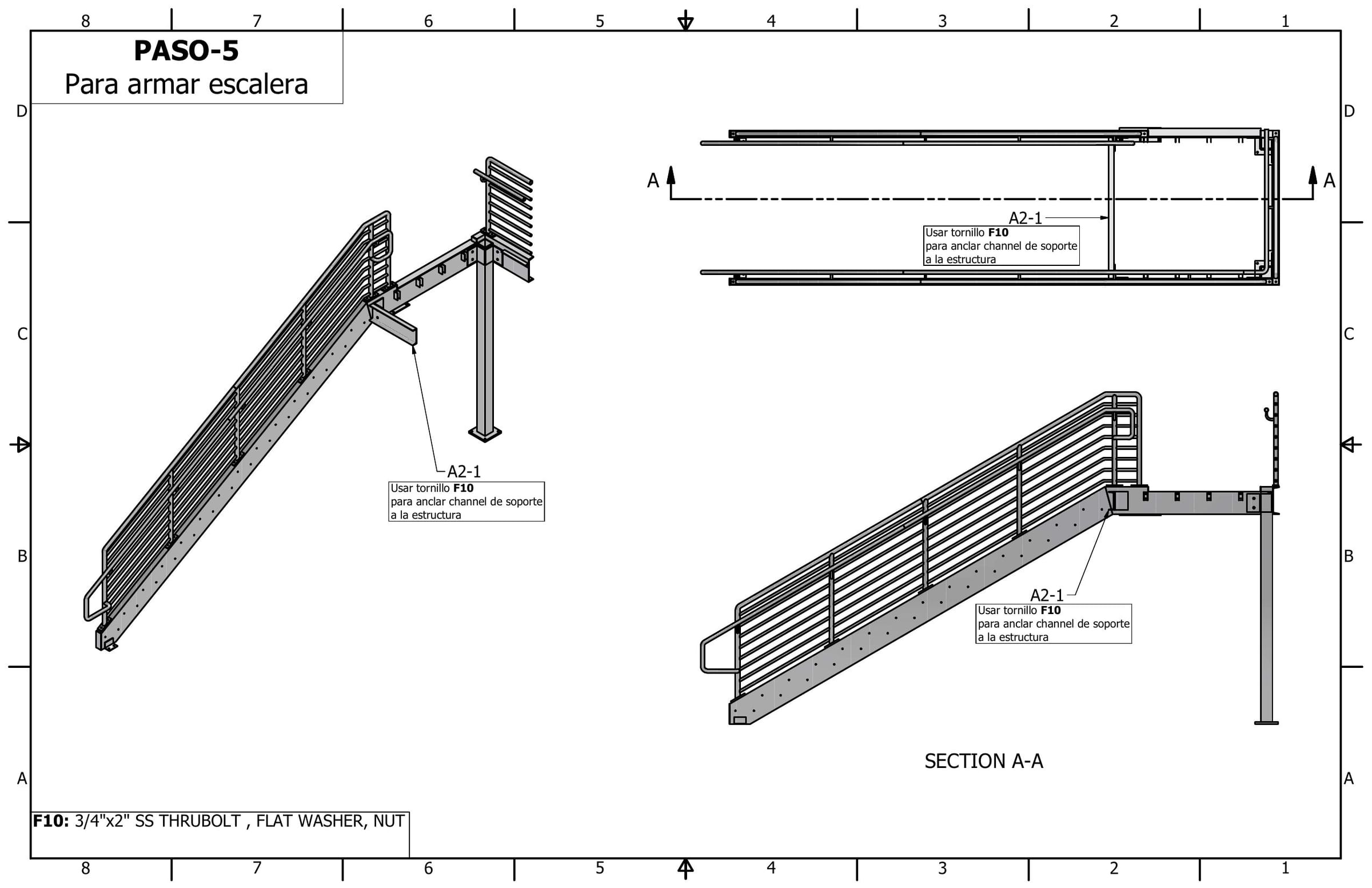

Every project ships with a complete fabrication-detailed shop drawing package —
base-plate callouts, weld symbols, member-by-member dimensioning, hardware
schedules, and revision-controlled section views. The sheets below are the
installation set the on-site crew worked from.
