Selected projects
Selected fabrication-ready projects: 3D parametric models, welding assembly drawings, and installation packages delivered to fabrication shops. Renders are generated from production geometry; site photos are from real installations.

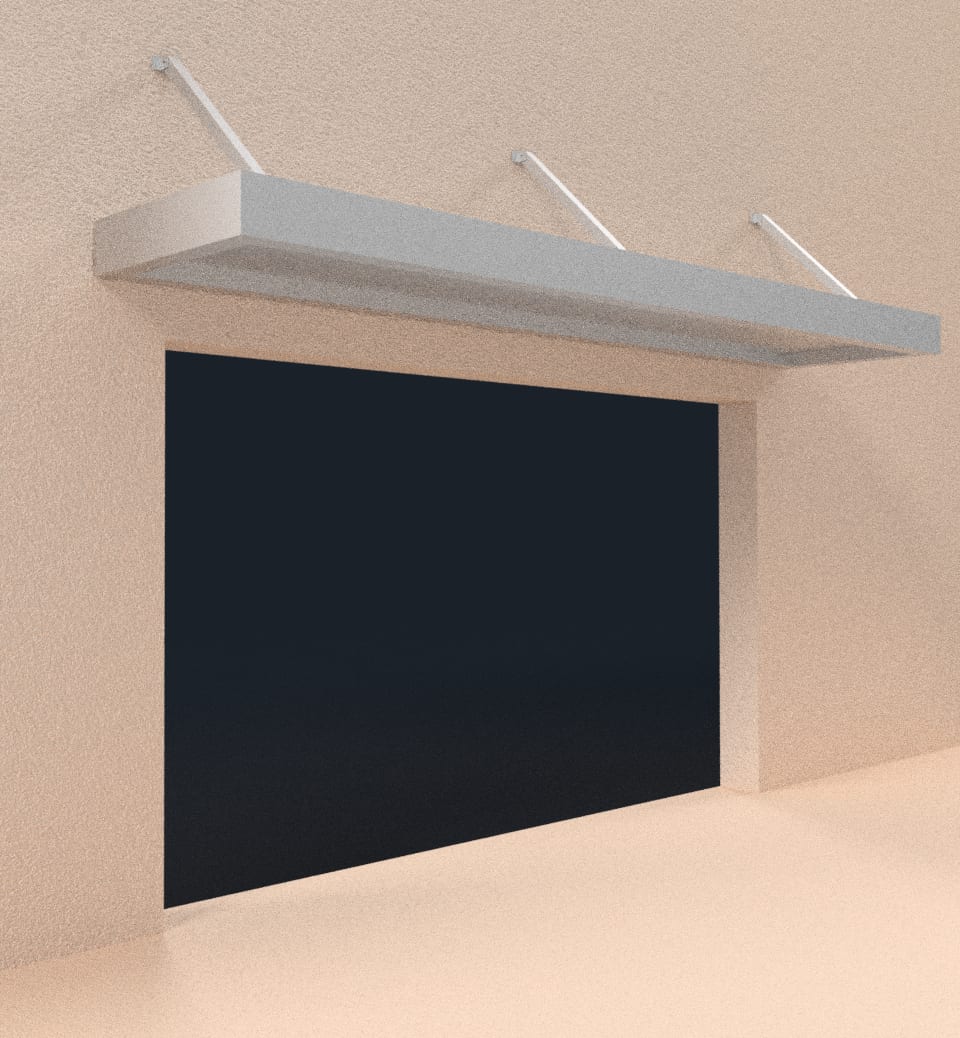

Friendly Laundry — Aluminum Canopies
Set of aluminum canopies for a commercial laundry facility in Florida. Parametric Inventor model built to support a complete fabrication-drawing package, with welded assembly details delivered to the shop.
View project →
Claredon — Exterior Stair & Railing
Exterior steel stair with custom railing system, built and installed in Florida. Engineered with a fully detailed fabrication package; the installation drawings reproduced here guided the on-site crew.
View project →

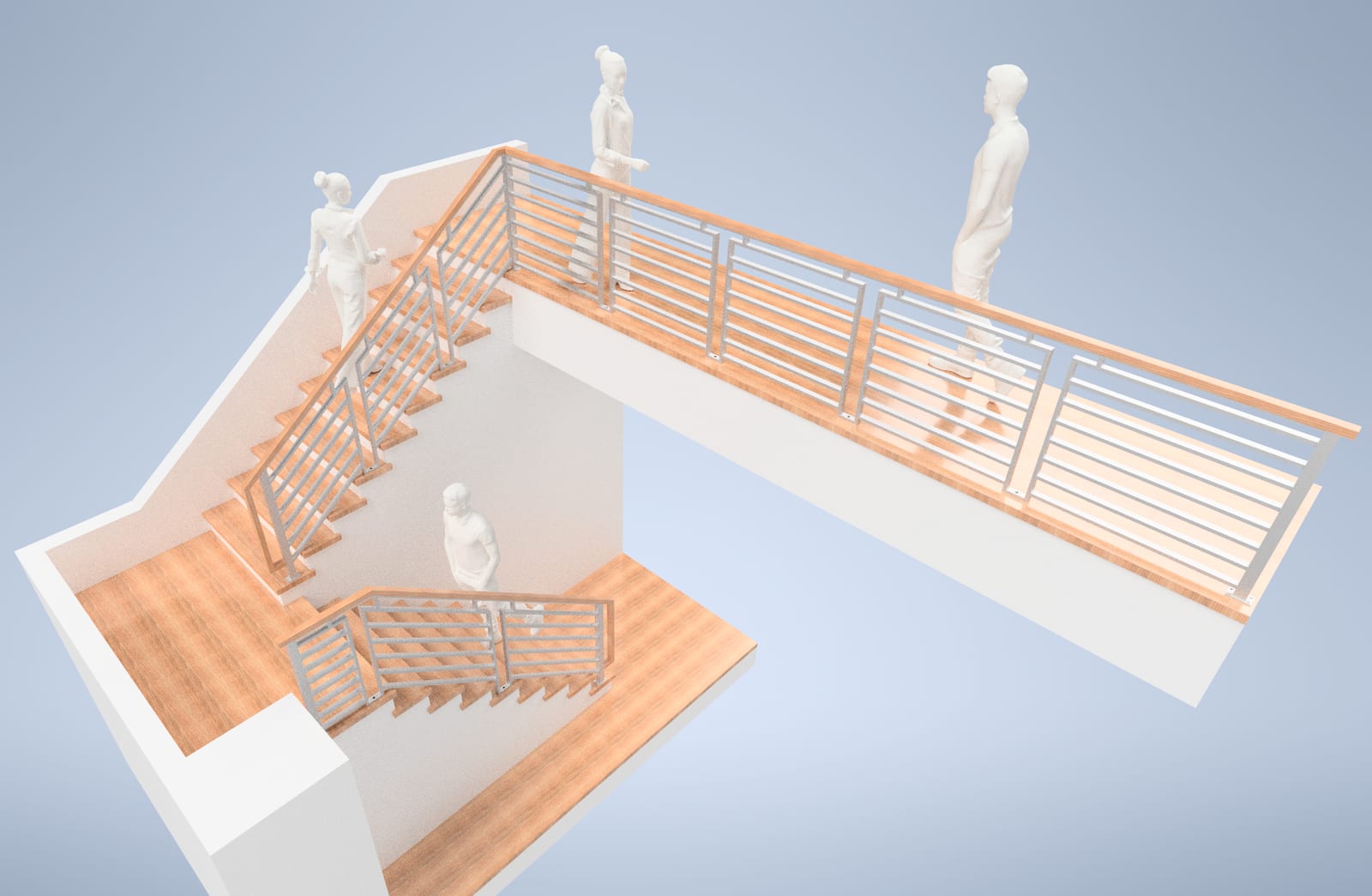

Interior Stair & Railing — Project I
Modern interior stair with horizontal-bar aluminum railing. Multi-flight assembly modeled in Inventor with a full fabrication package — base-plate callouts, weld details, and connection drawings — plus the installation set shown here.
View project →

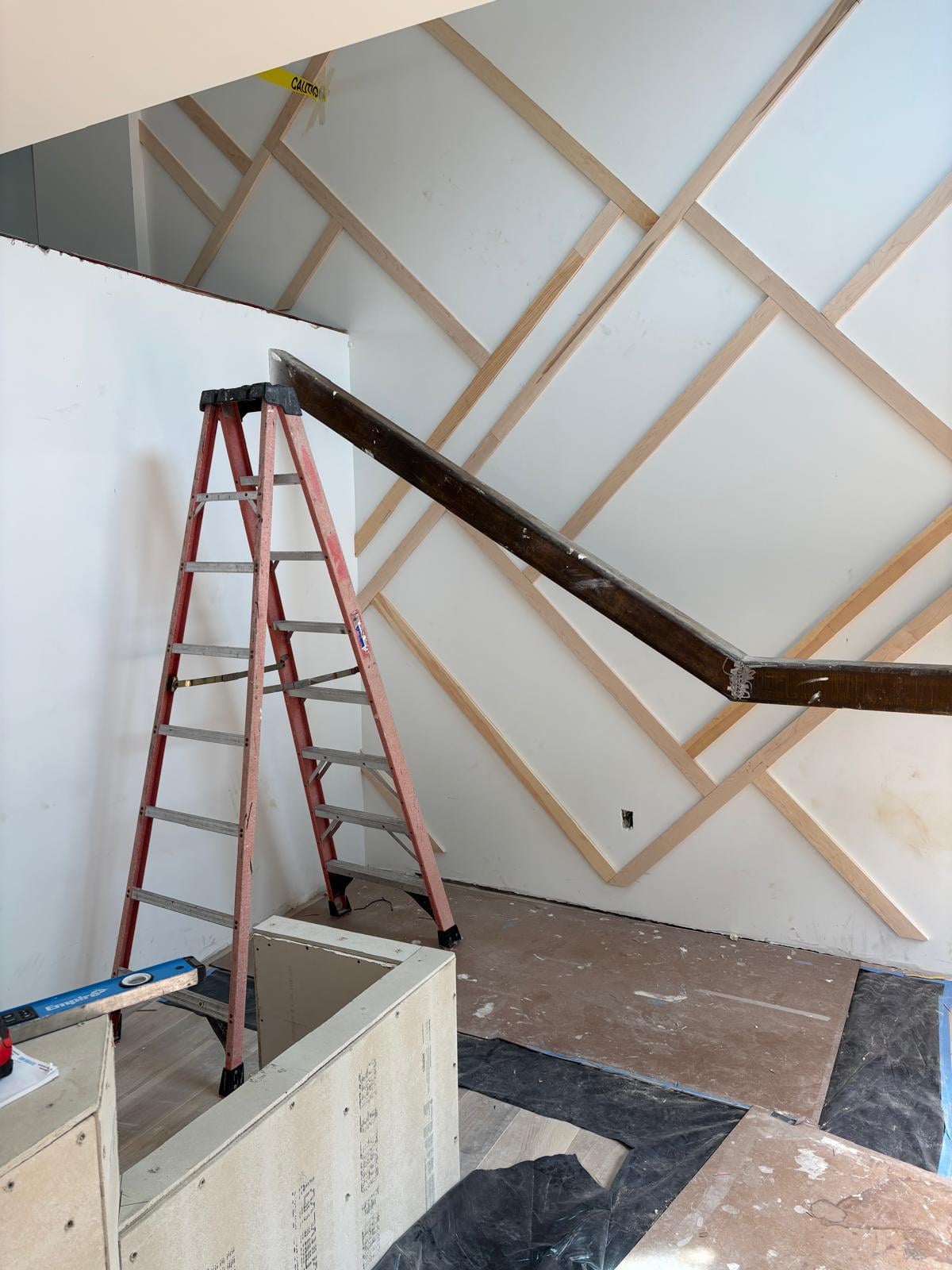

Interior Stair II — Steel Substructure + Railing
Two-phase delivery: first the steel substructure with welded neck connections embedded into the wood-finished base, then the aluminum stair and railing assembly mounted on top. Each phase shipped with its own complete fabrication package; the three installation sets are shown below in build order.
View project →

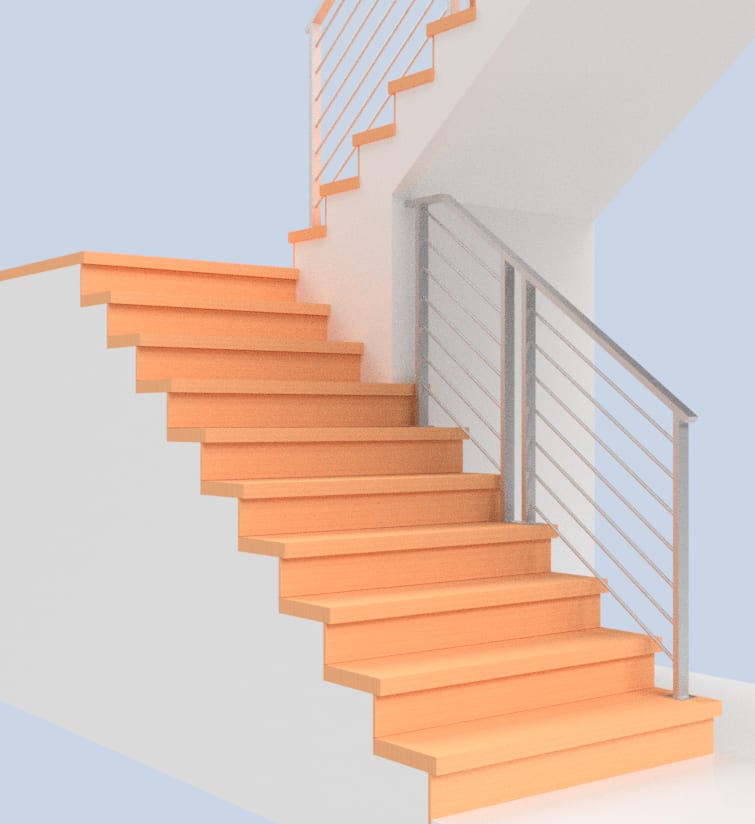

Interior Stair & Railing — Project III
Modern residential stair with cable-railing system. Modeled parametrically in Inventor and delivered with a full fabrication drawing package; the installation sheet shown here was the on-site reference.
View project →

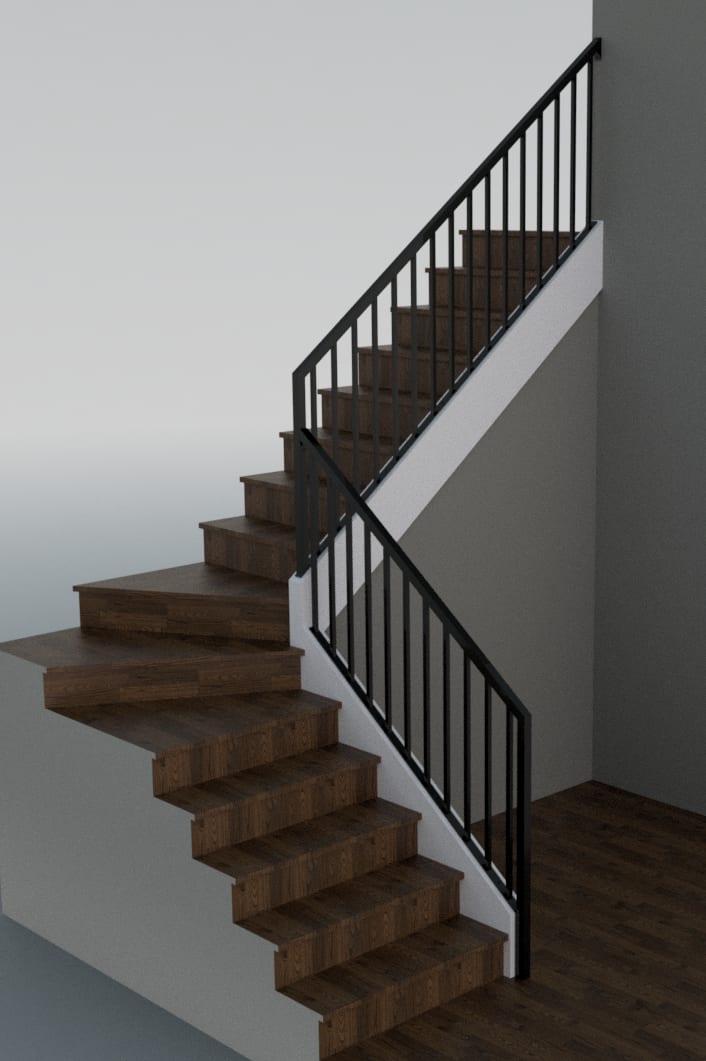

Interior Stair & Railing — Project IV
Interior staircase with custom aluminum railing. Parametric Inventor model fed a complete fabrication and section-view drawing package; the installation set (INST_STR) is reproduced below.
View project →
Interior Stair & Railing — Project V
Interior stair assembly with hardware-detailed connections. Full fabrication package developed in Inventor, delivered alongside the installation drawings shown below.
View project →
Interior Stair & Railing — Project VI
Interior stair and railing with structural and finish details modeled in Inventor. The complete fabrication package was issued to the shop; the installation set is reproduced below.
View project →

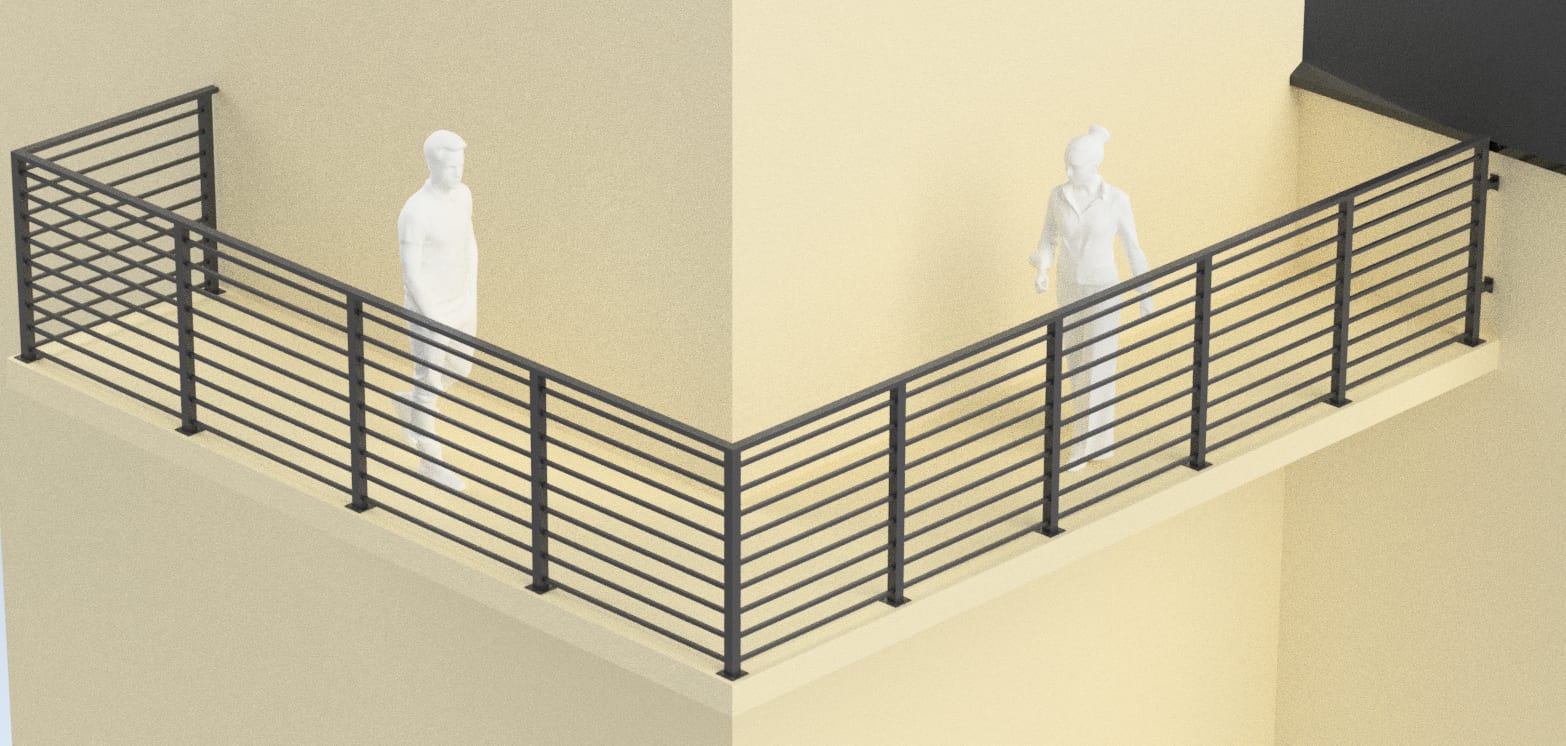

Balcony Railings
Aluminum balcony railing system spanning multiple balcony types. Parametric Inventor model produced a complete fabrication package with post-connection details and weld assembly callouts. Two installation drawing sets are reproduced below in sequence.
View project →

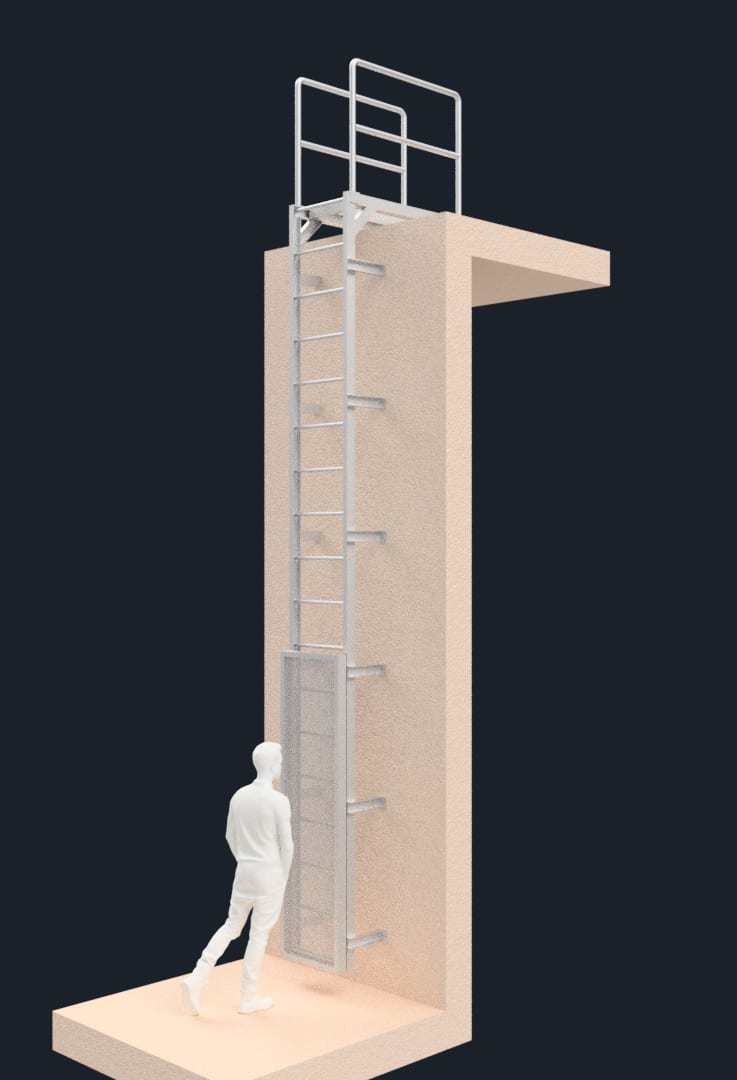

Friendly Laundry — Roof Access Ladder
OSHA-compliant roof access ladder with safety cage. Engineered with a complete fabrication drawing package — welded assembly, cage details, and shop callouts; the installation sheet is reproduced below.
View project →
