Set of aluminum canopies for a commercial laundry facility in Florida. Parametric Inventor model built to support a complete fabrication-drawing package, with welded assembly details delivered to the shop.

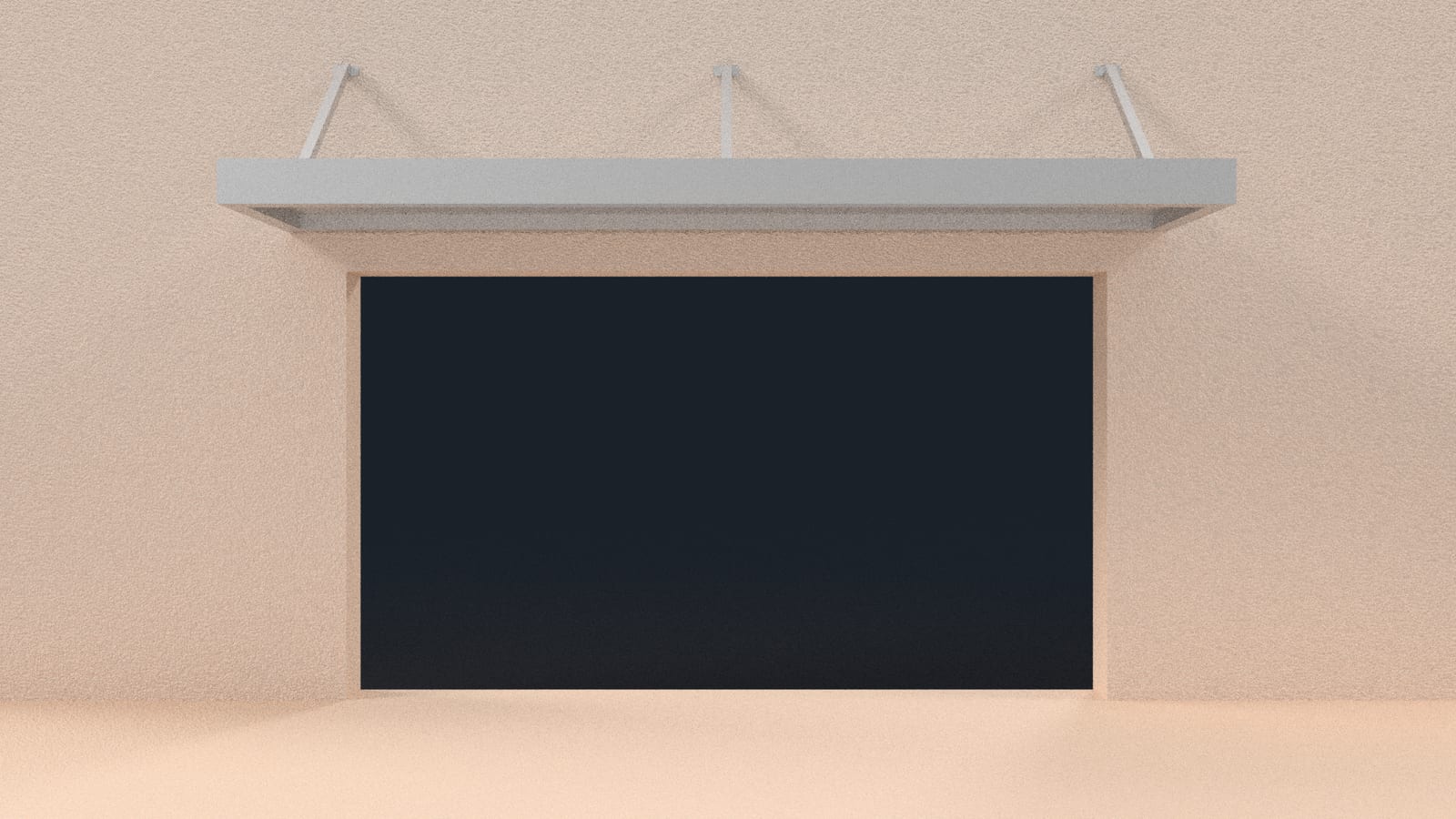

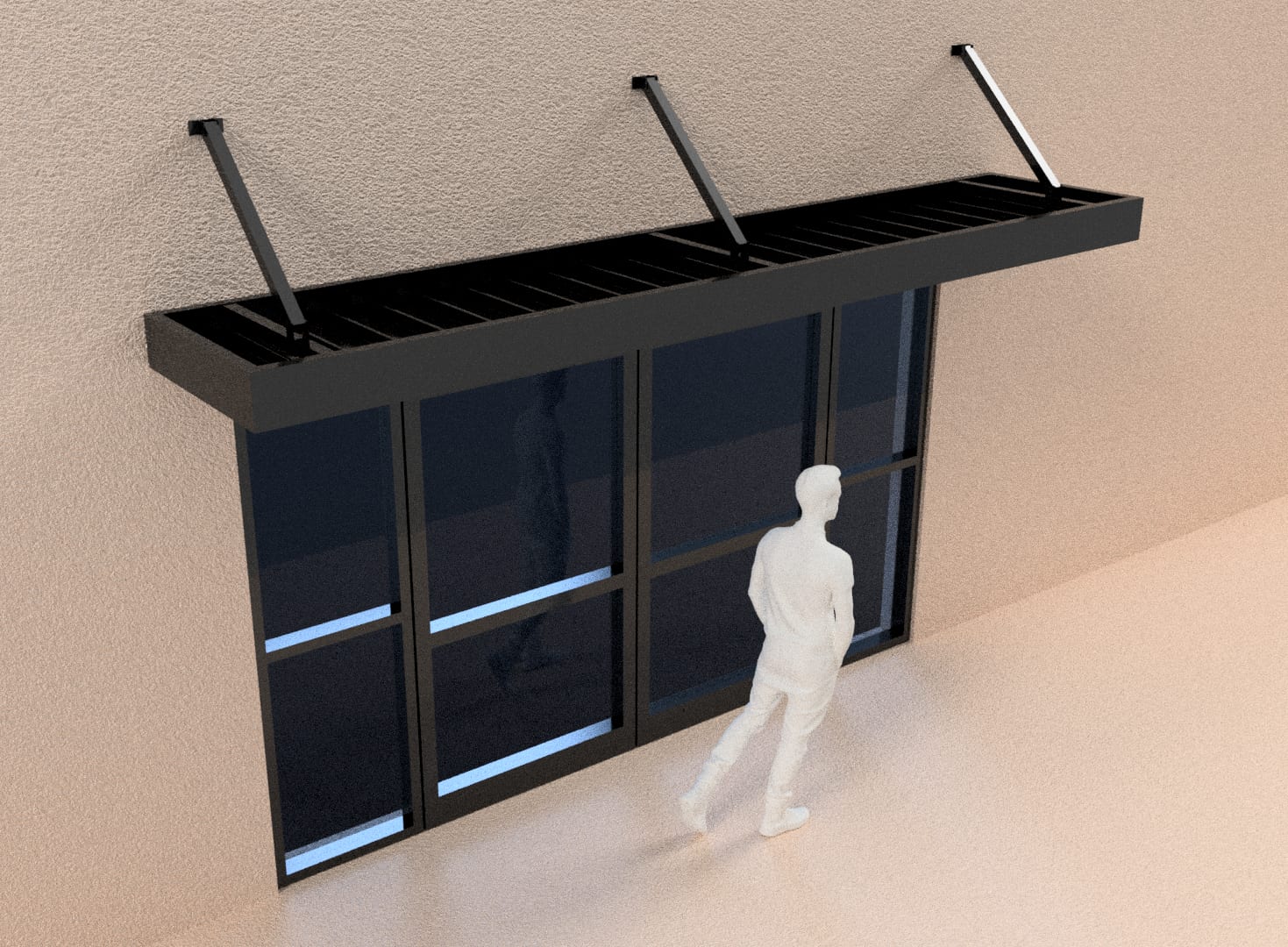

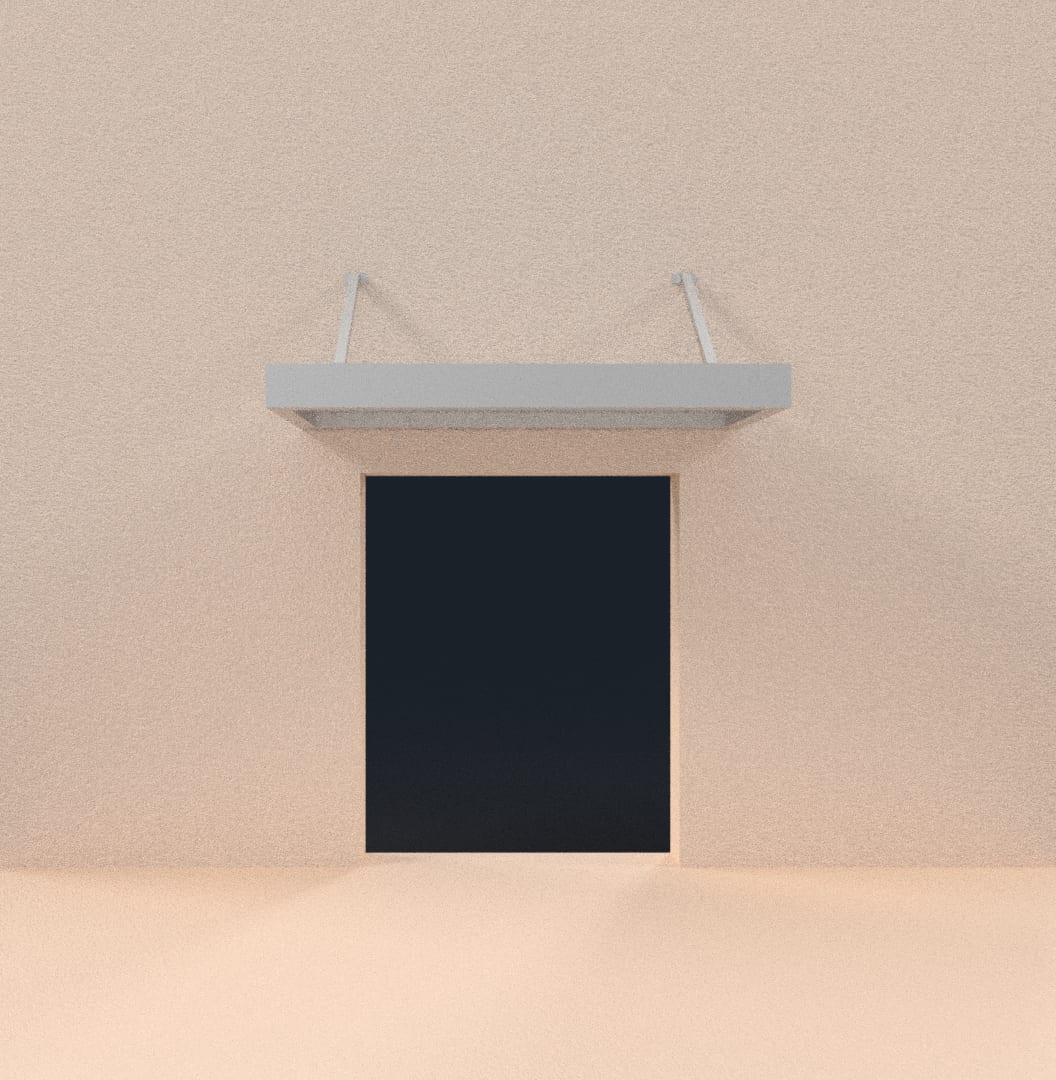

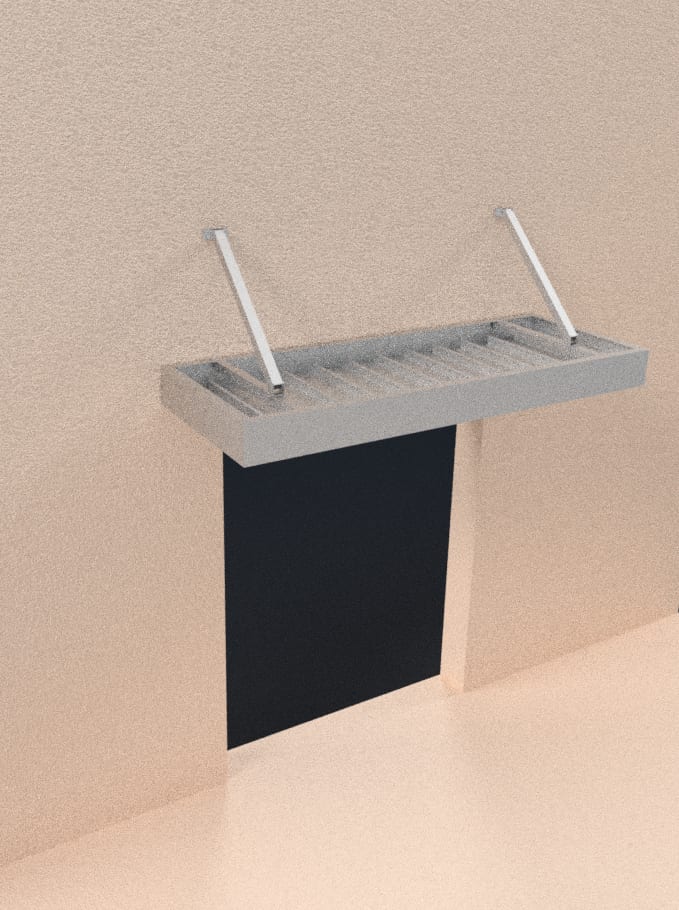

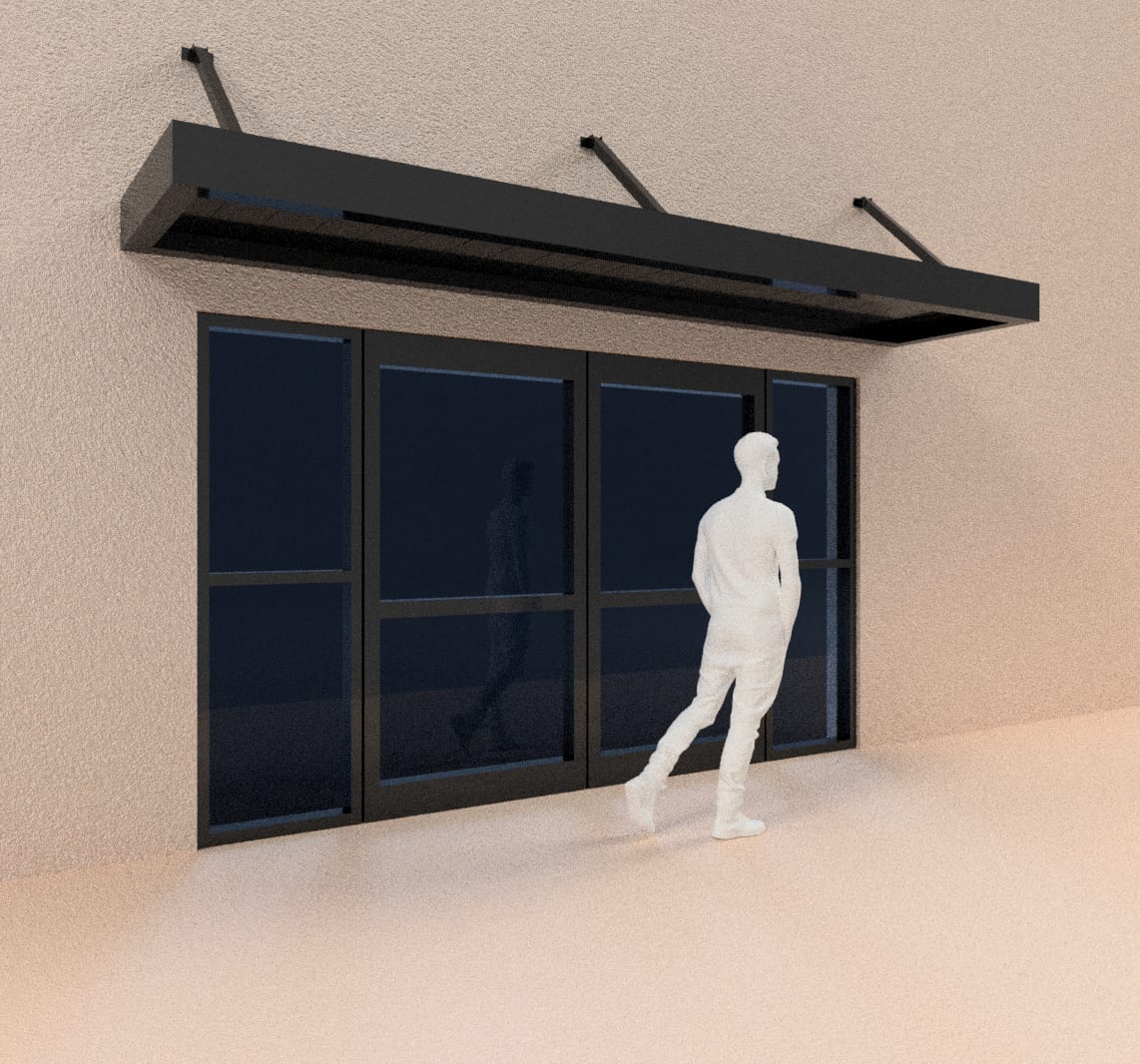

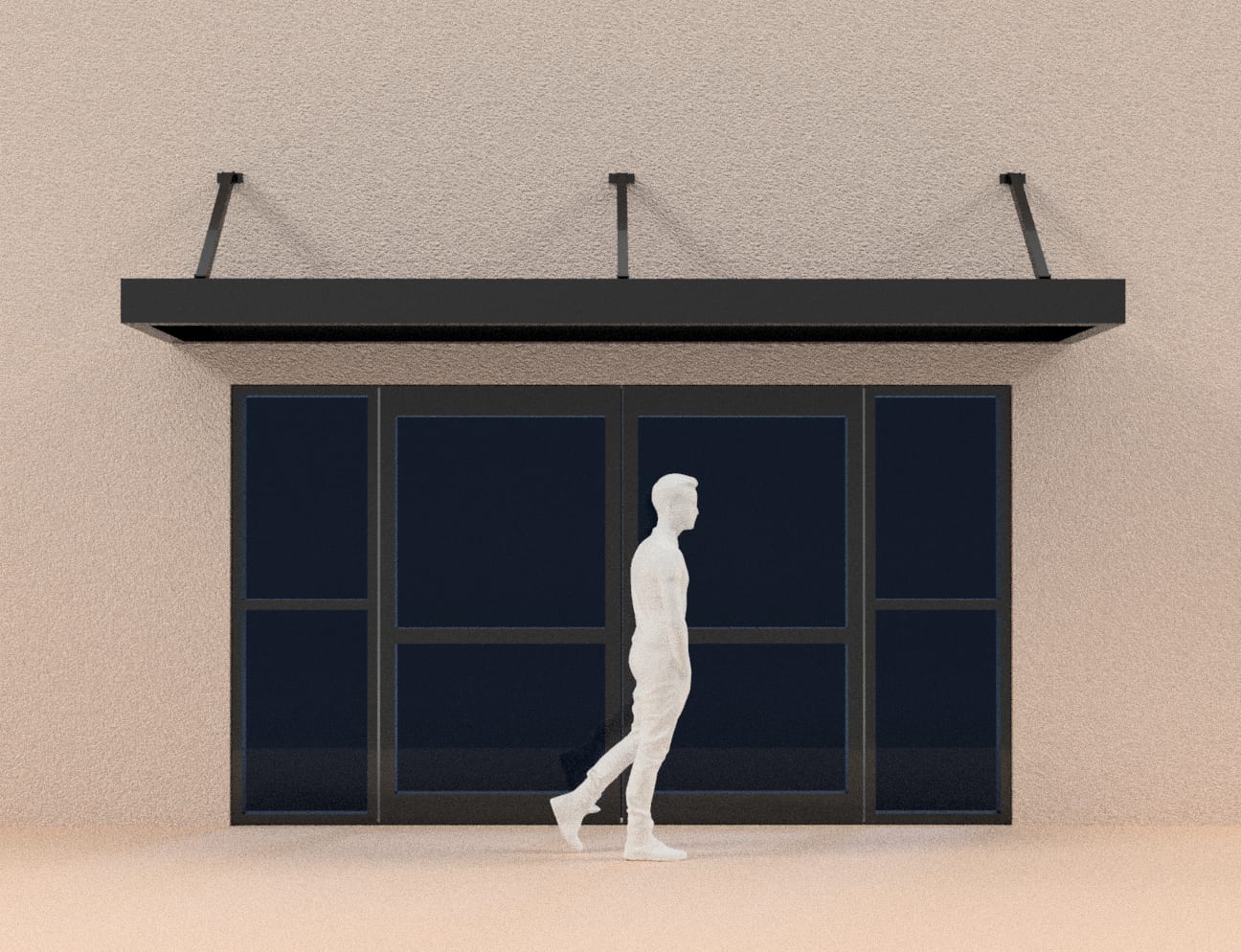

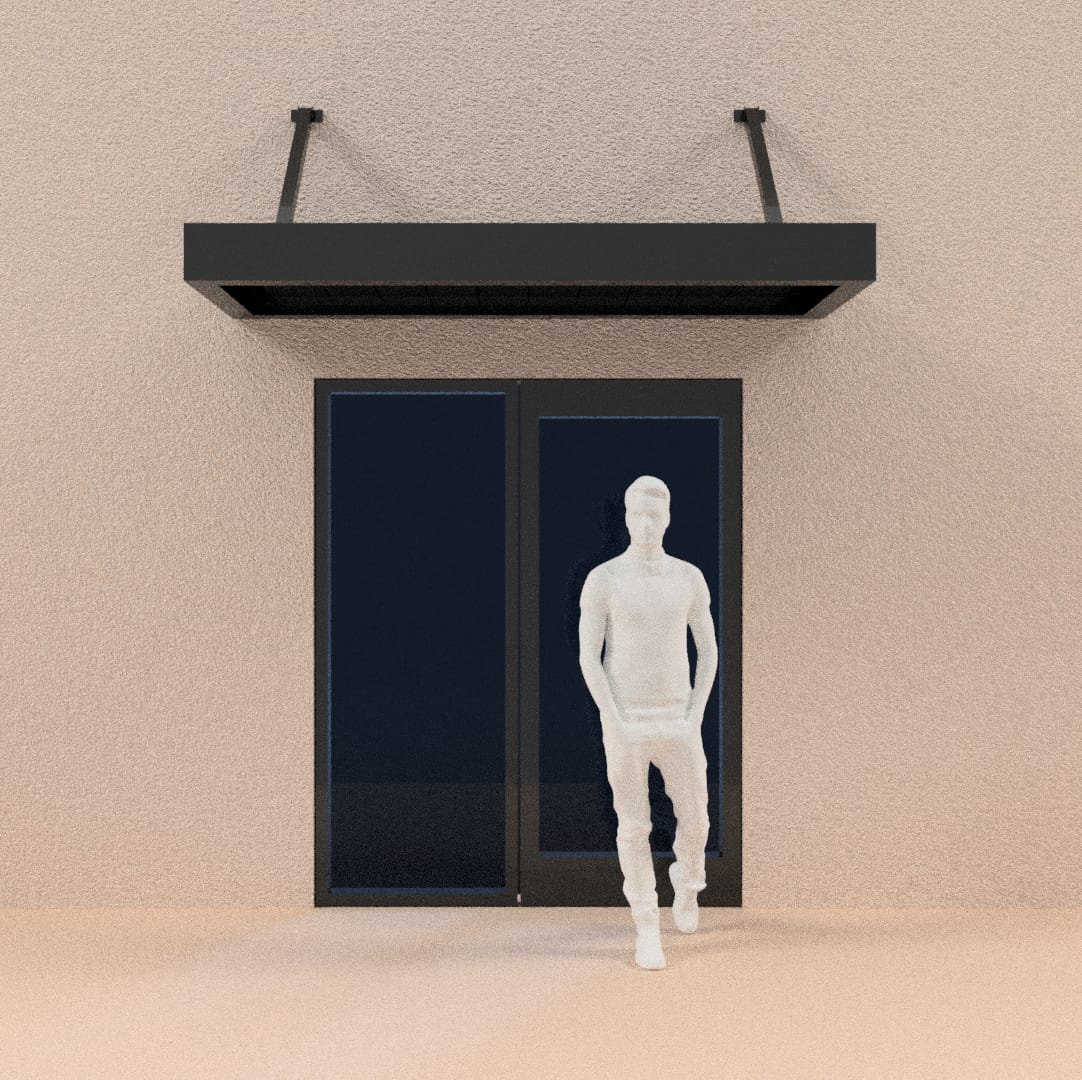

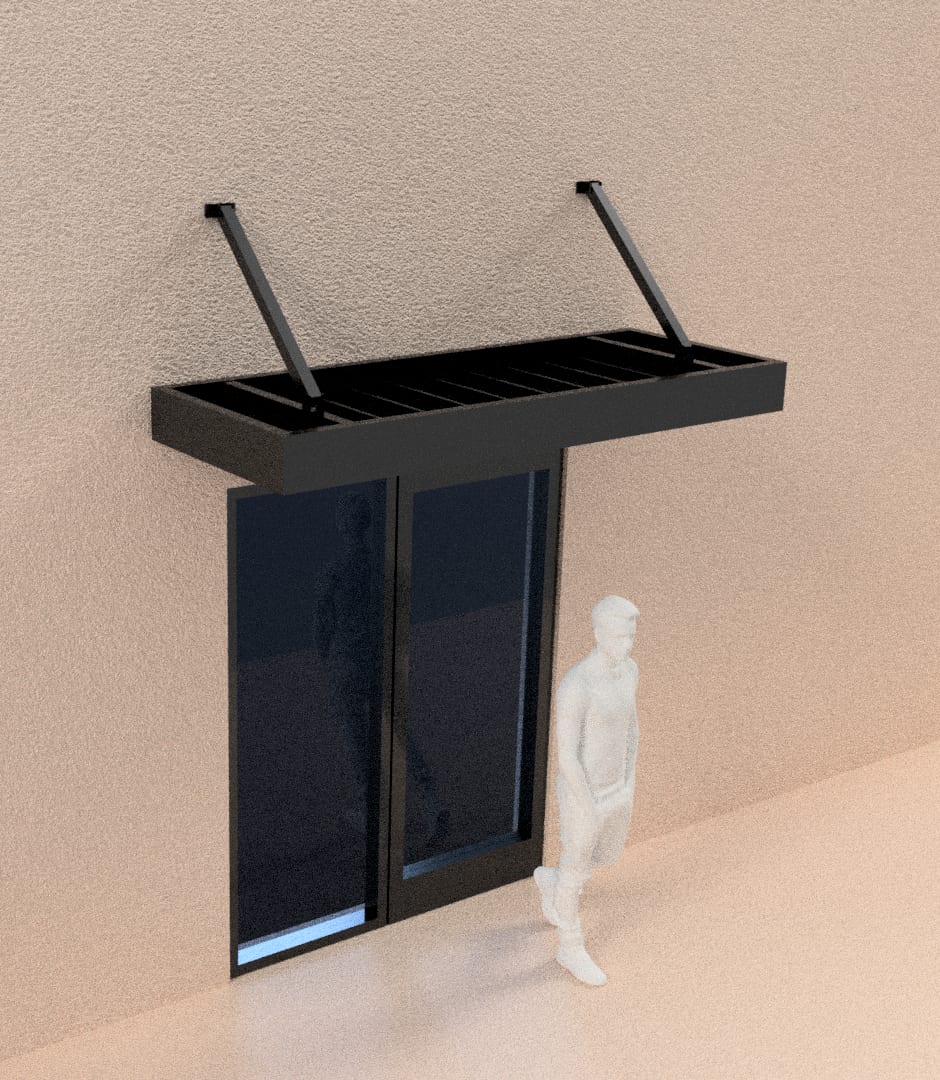

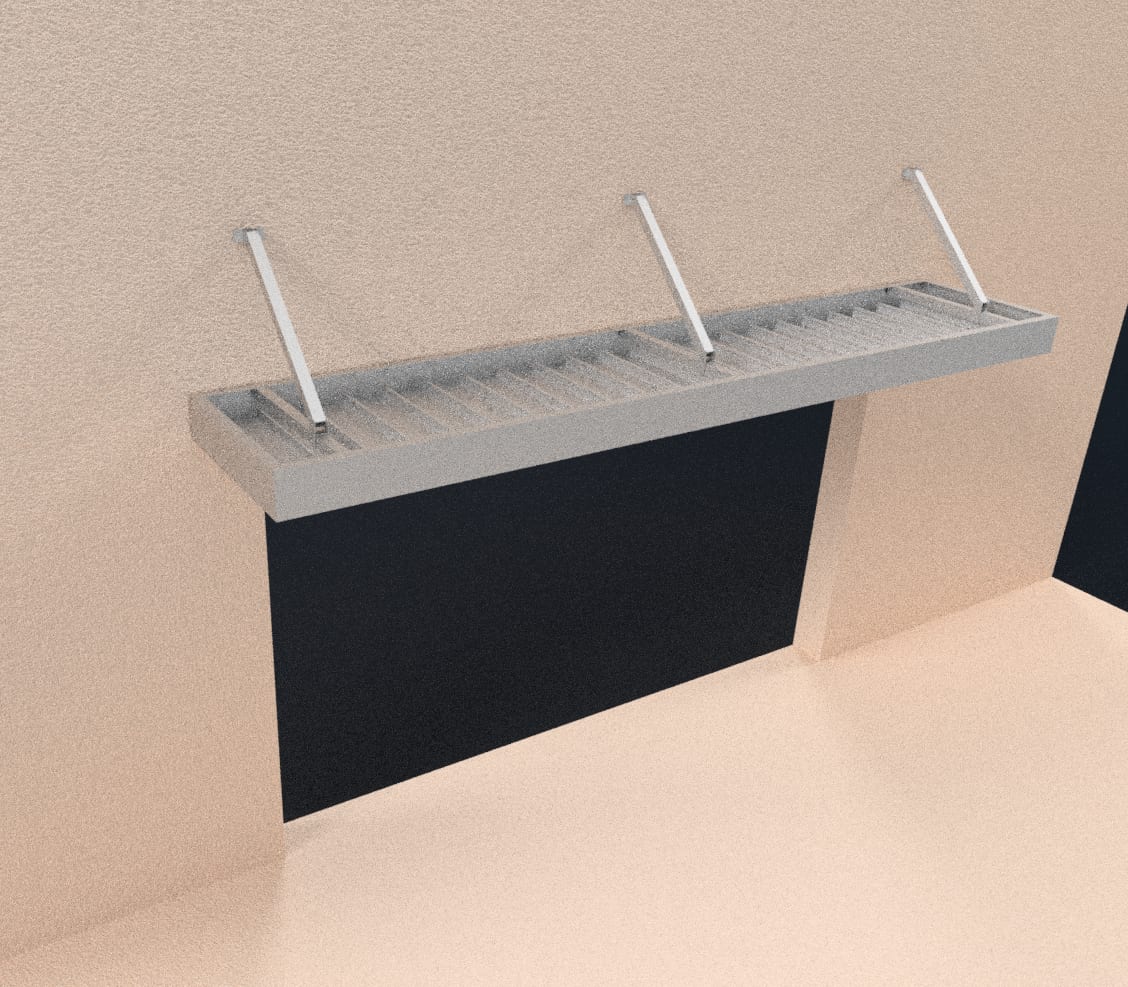

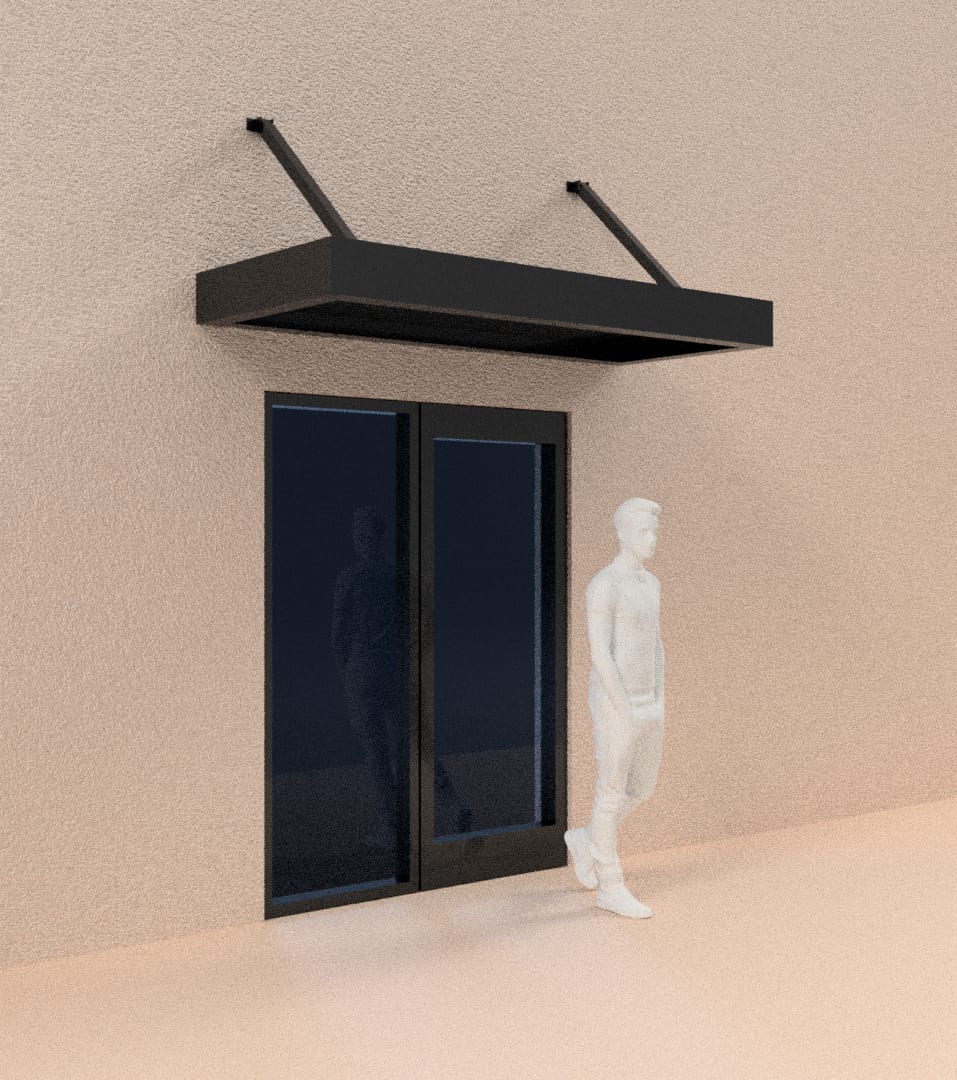

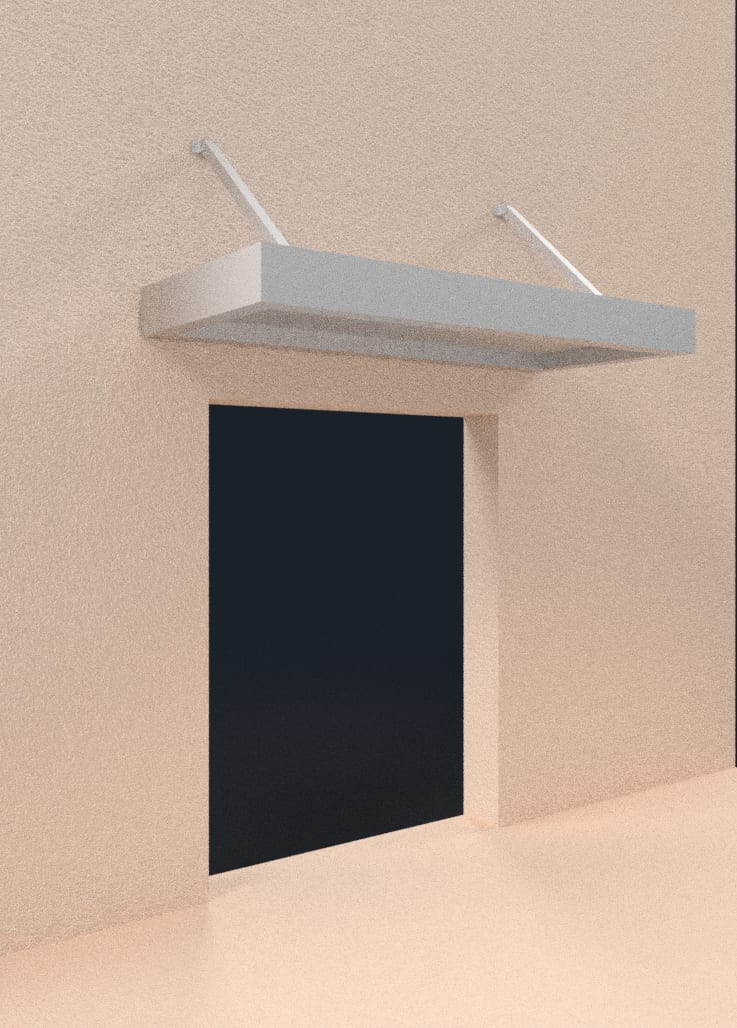

3D renders · parametric Inventor model
Modeling

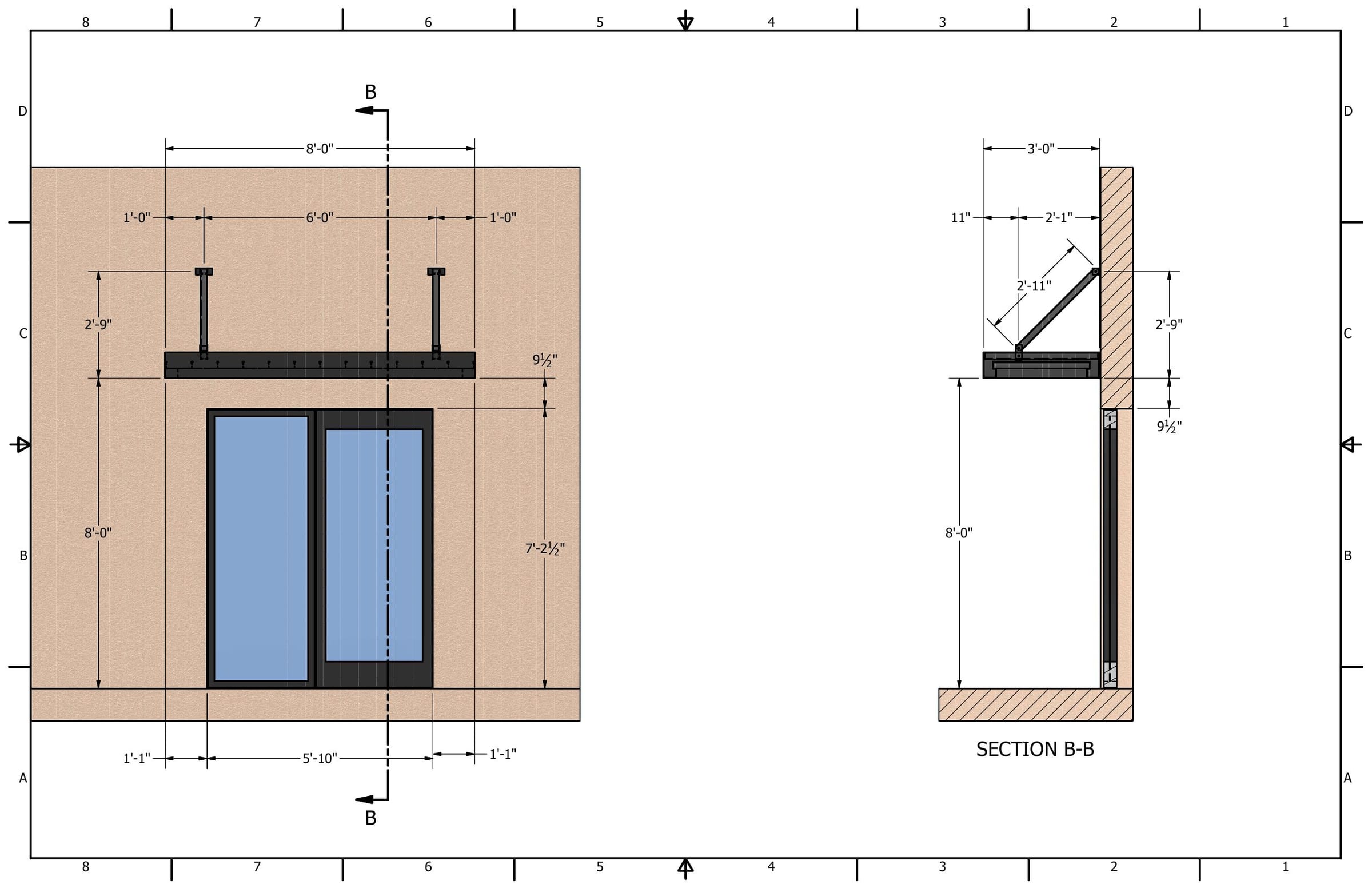

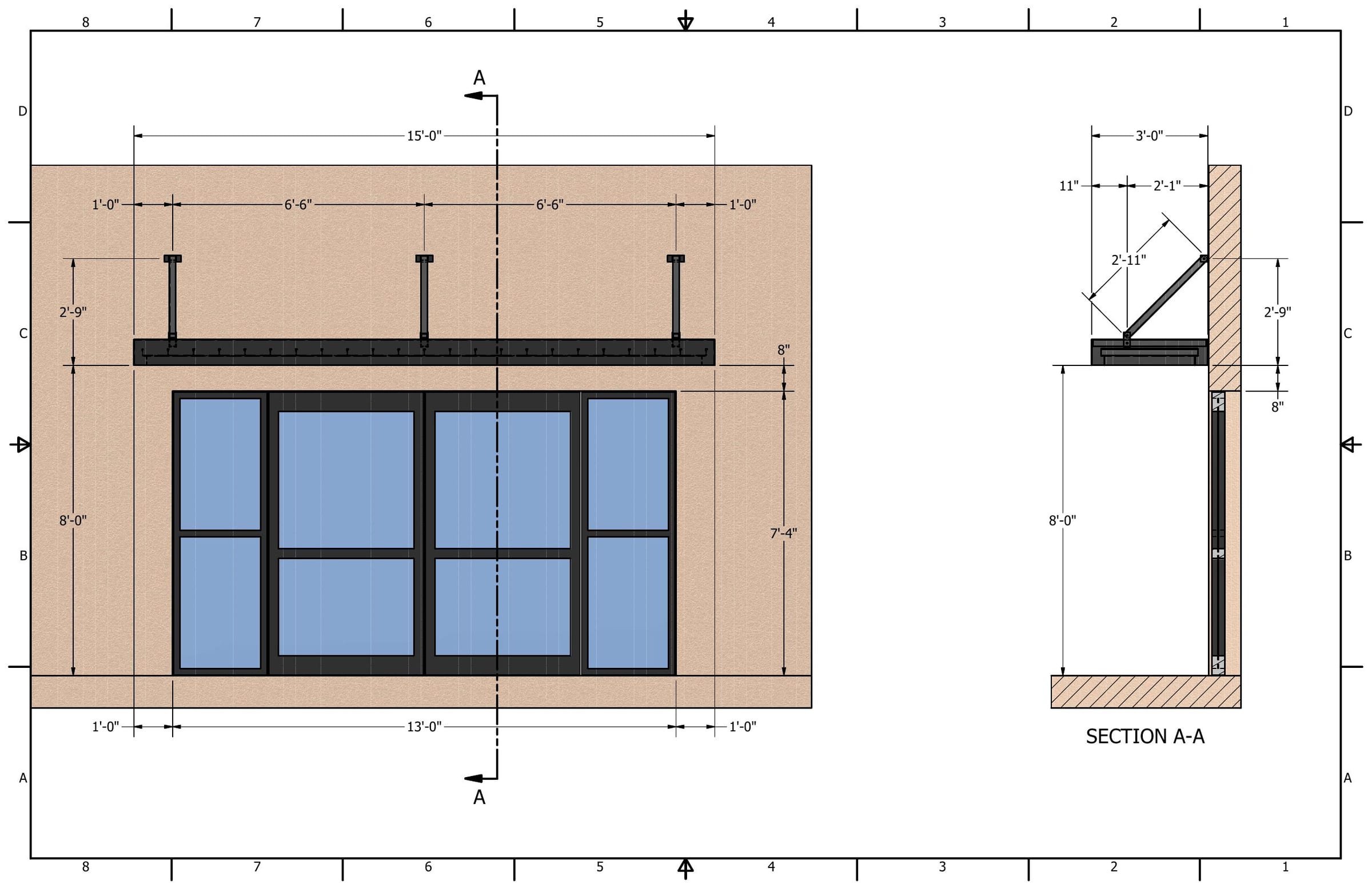

Installation drawings · 2 sheets
Documentation
Installation drawings shown.
Every project ships with a complete fabrication-detailed shop drawing package —
base-plate callouts, weld symbols, member-by-member dimensioning, hardware
schedules, and revision-controlled section views. The sheets below are the
installation set the on-site crew worked from.
