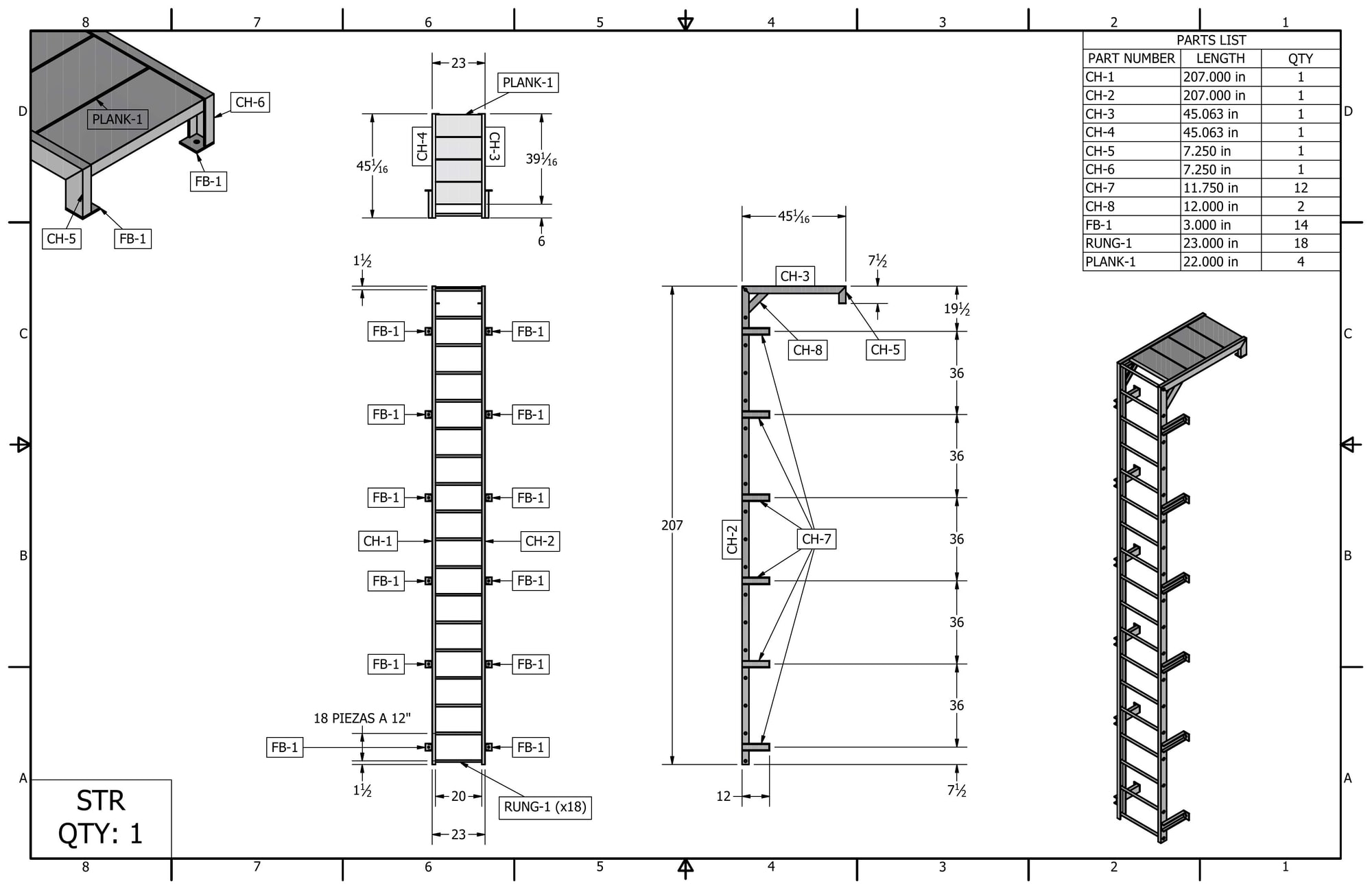

OSHA-compliant roof access ladder with safety cage. Engineered with a complete fabrication drawing package — welded assembly, cage details, and shop callouts; the installation sheet is reproduced below.

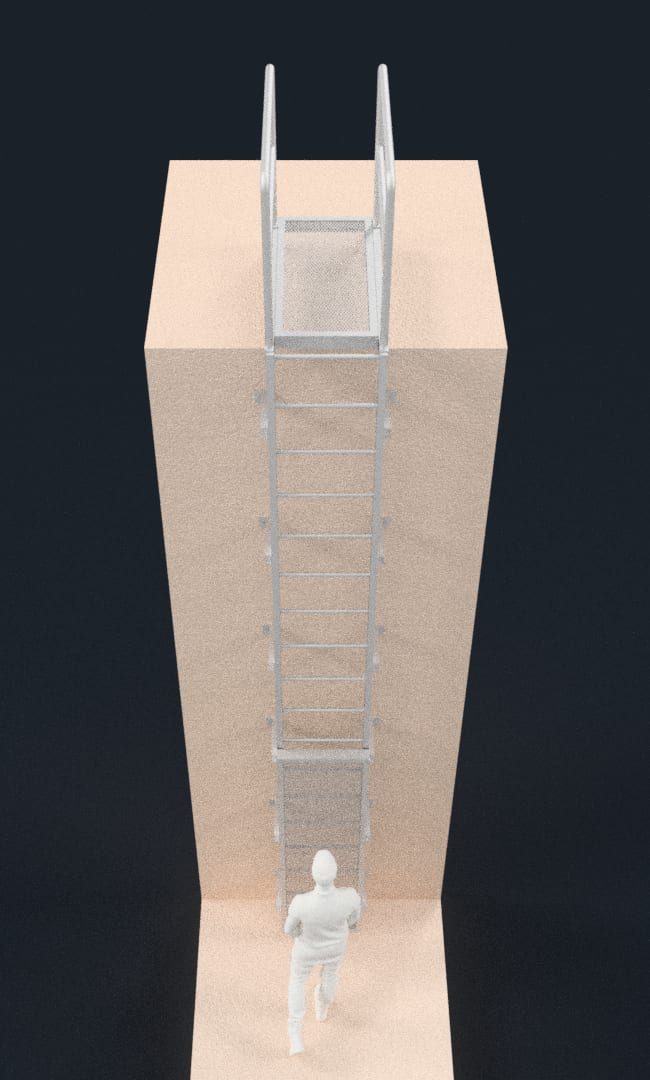

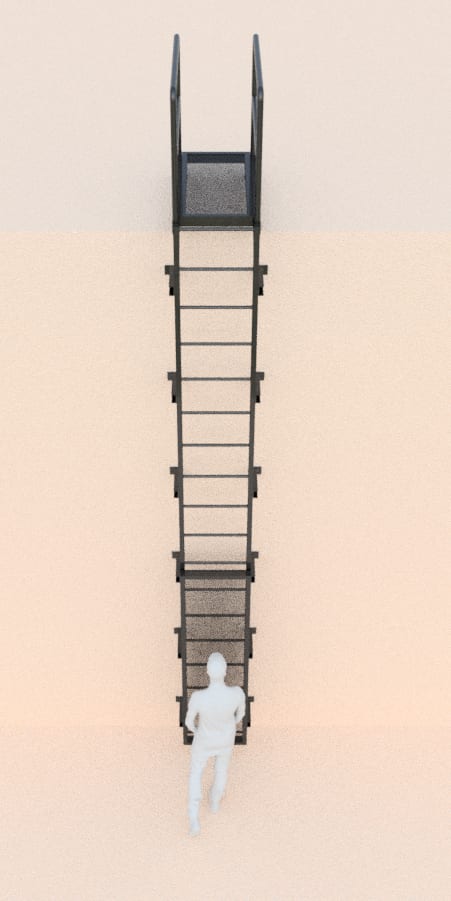

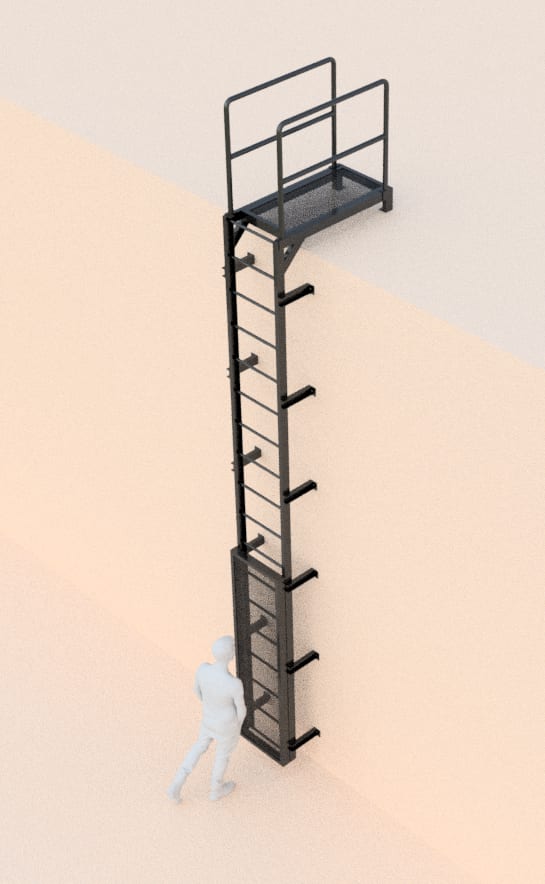

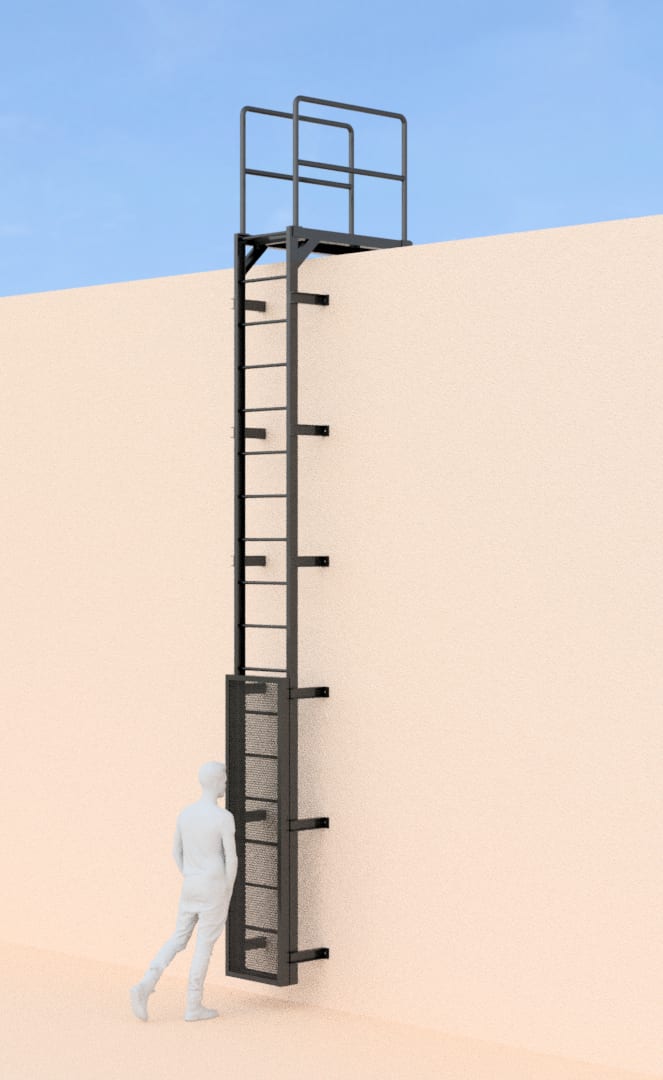

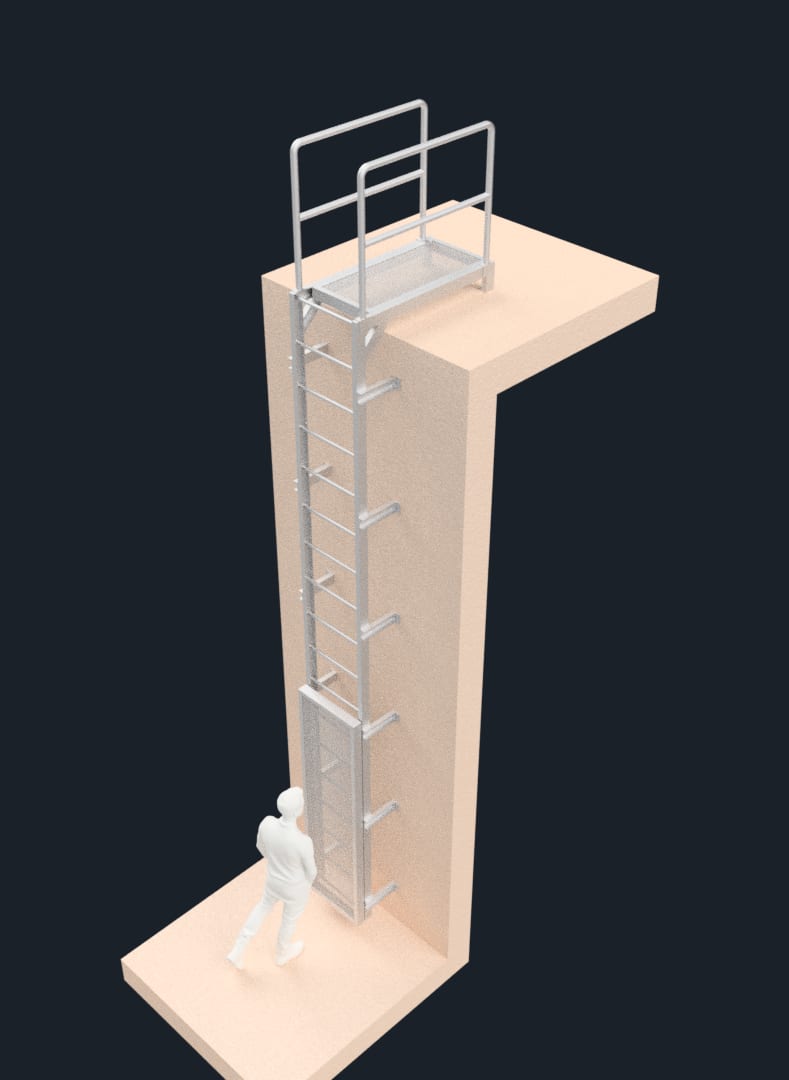

3D renders · parametric Inventor model
Modeling

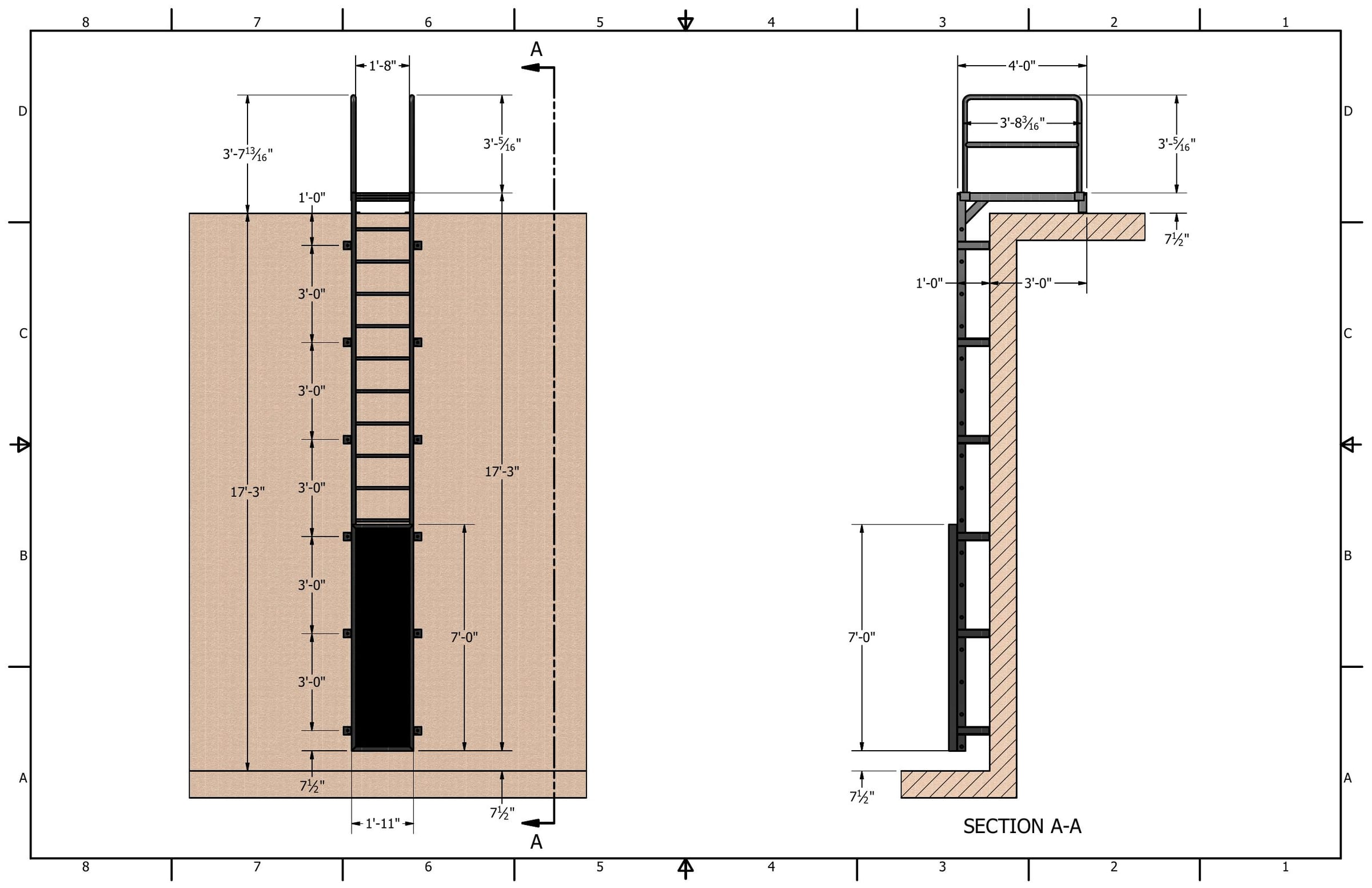

Installation drawings · 1 sheet
Documentation
Installation drawings shown.
Every project ships with a complete fabrication-detailed shop drawing package —
base-plate callouts, weld symbols, member-by-member dimensioning, hardware
schedules, and revision-controlled section views. The sheets below are the
installation set the on-site crew worked from.
