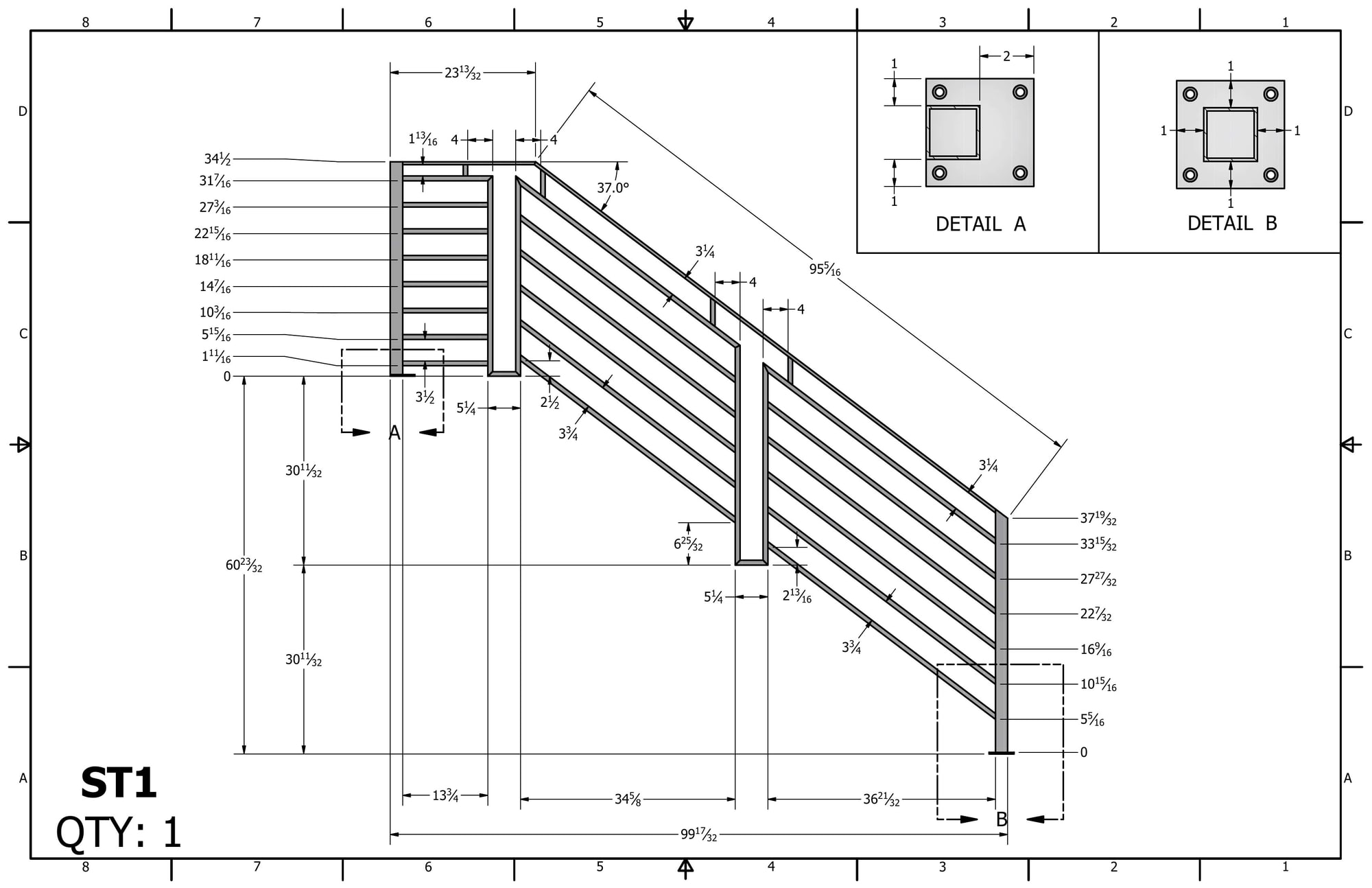

Modern interior stair with horizontal-bar aluminum railing. Multi-flight assembly modeled in Inventor with a full fabrication package — base-plate callouts, weld details, and connection drawings — plus the installation set shown here.
3D renders · parametric Inventor model
Modeling

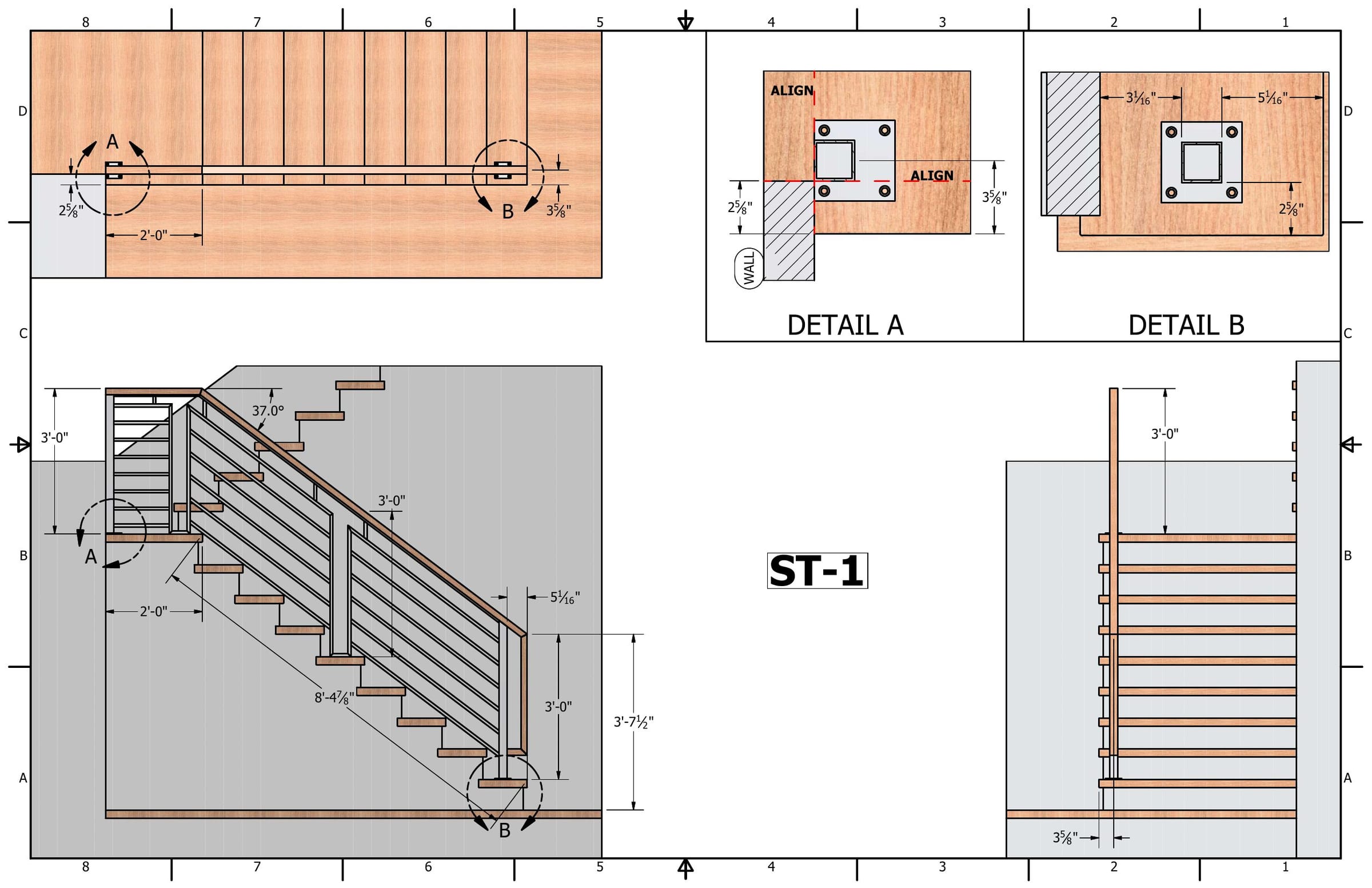

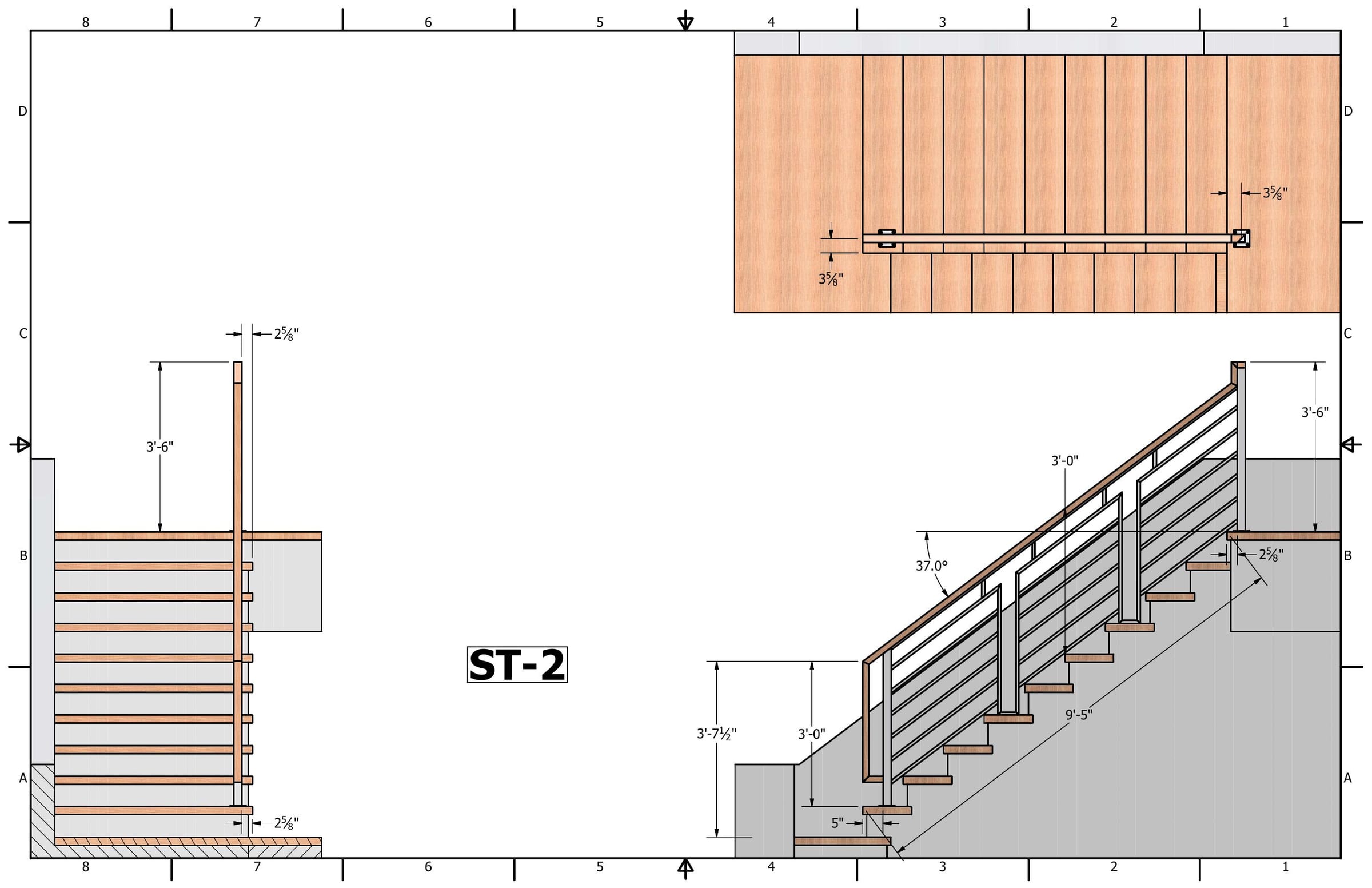

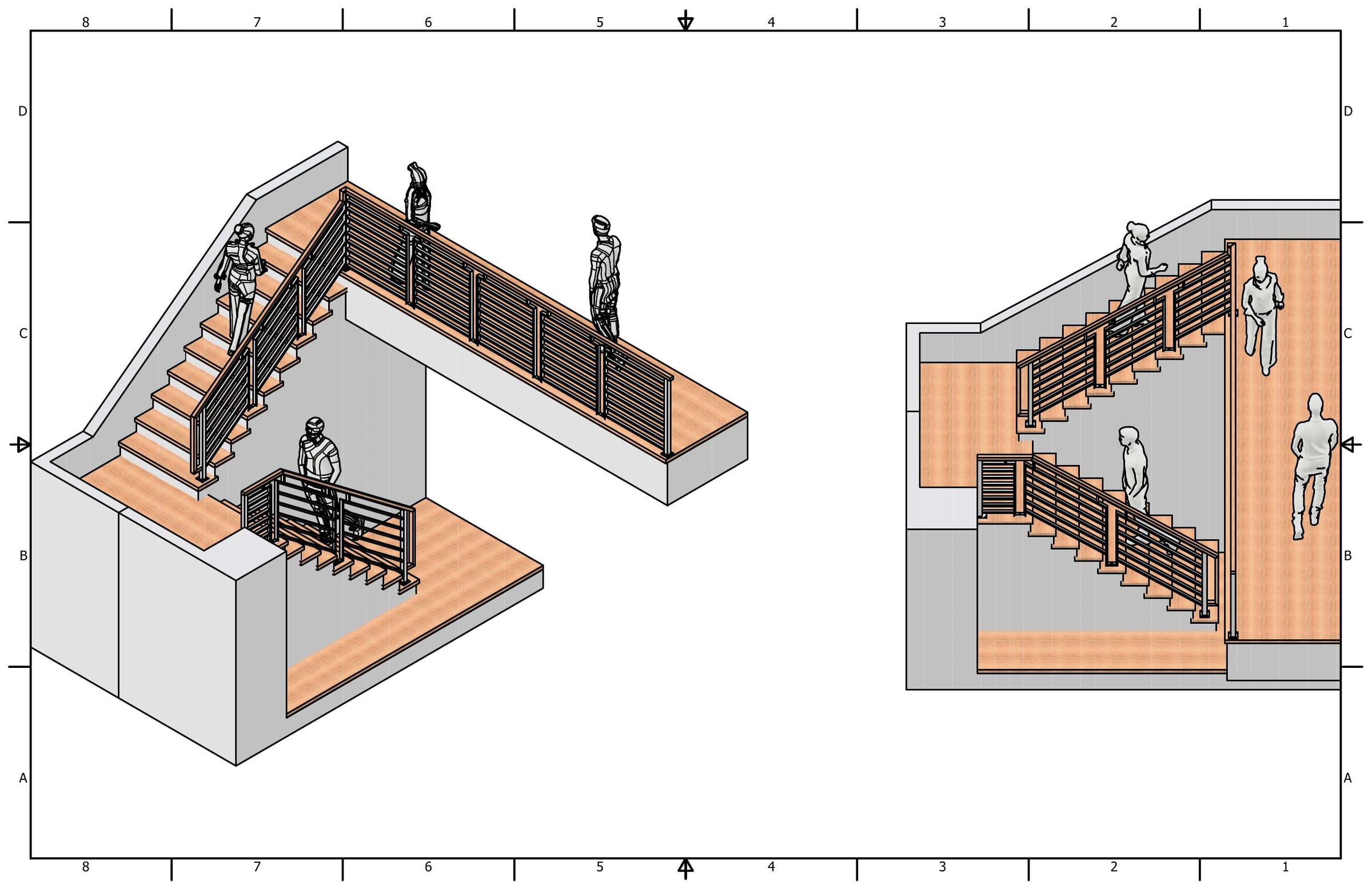

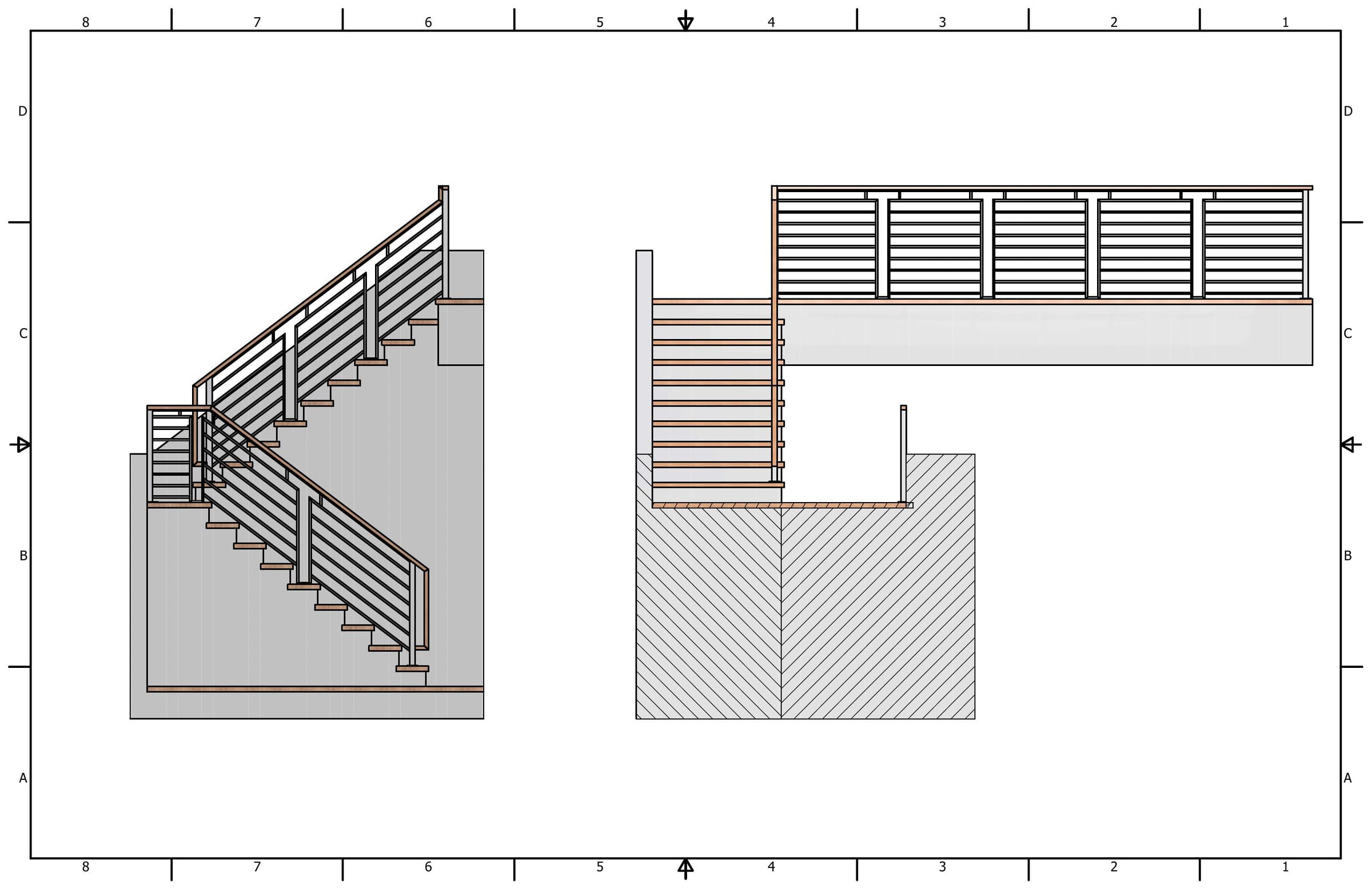

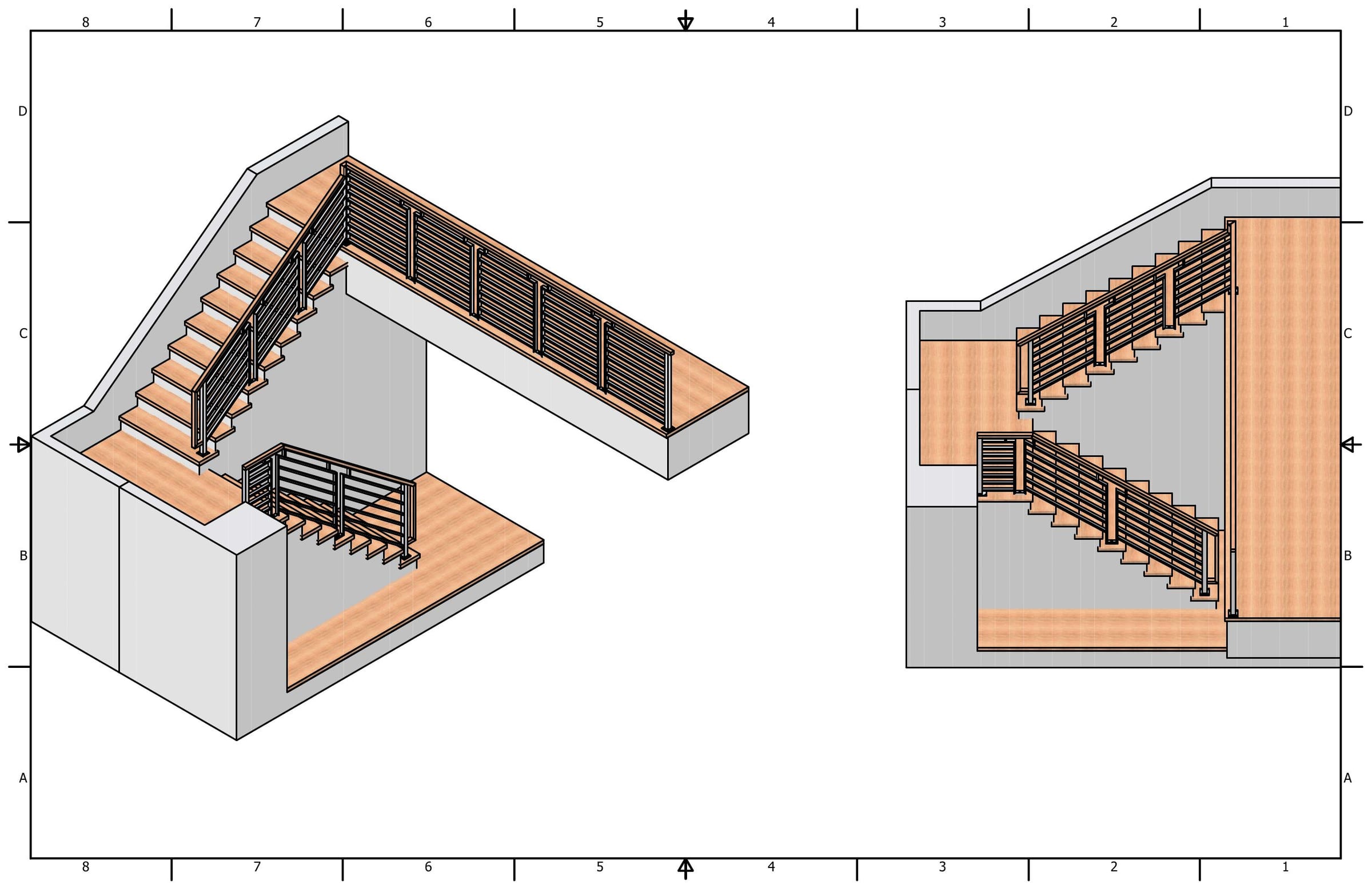

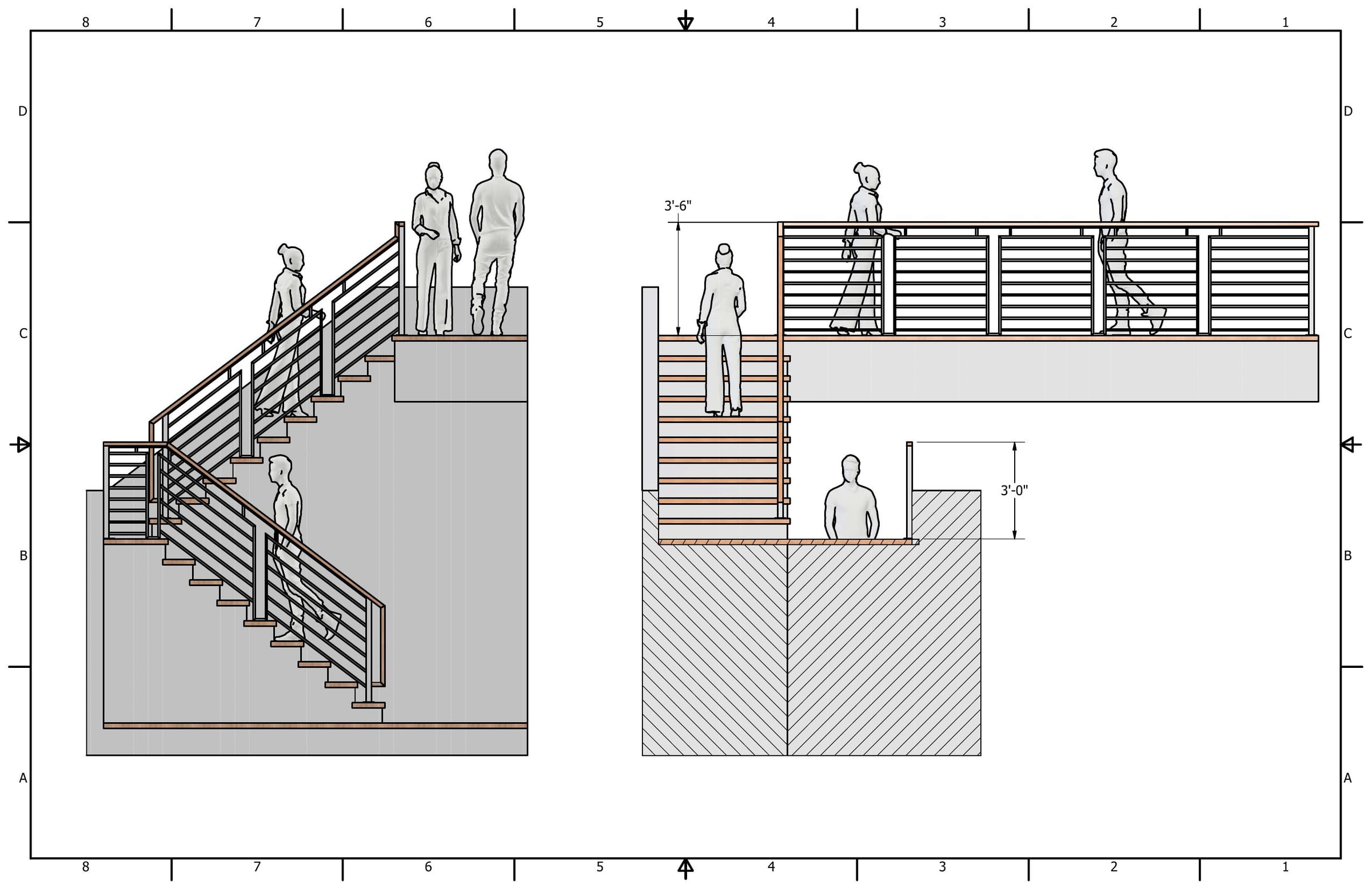

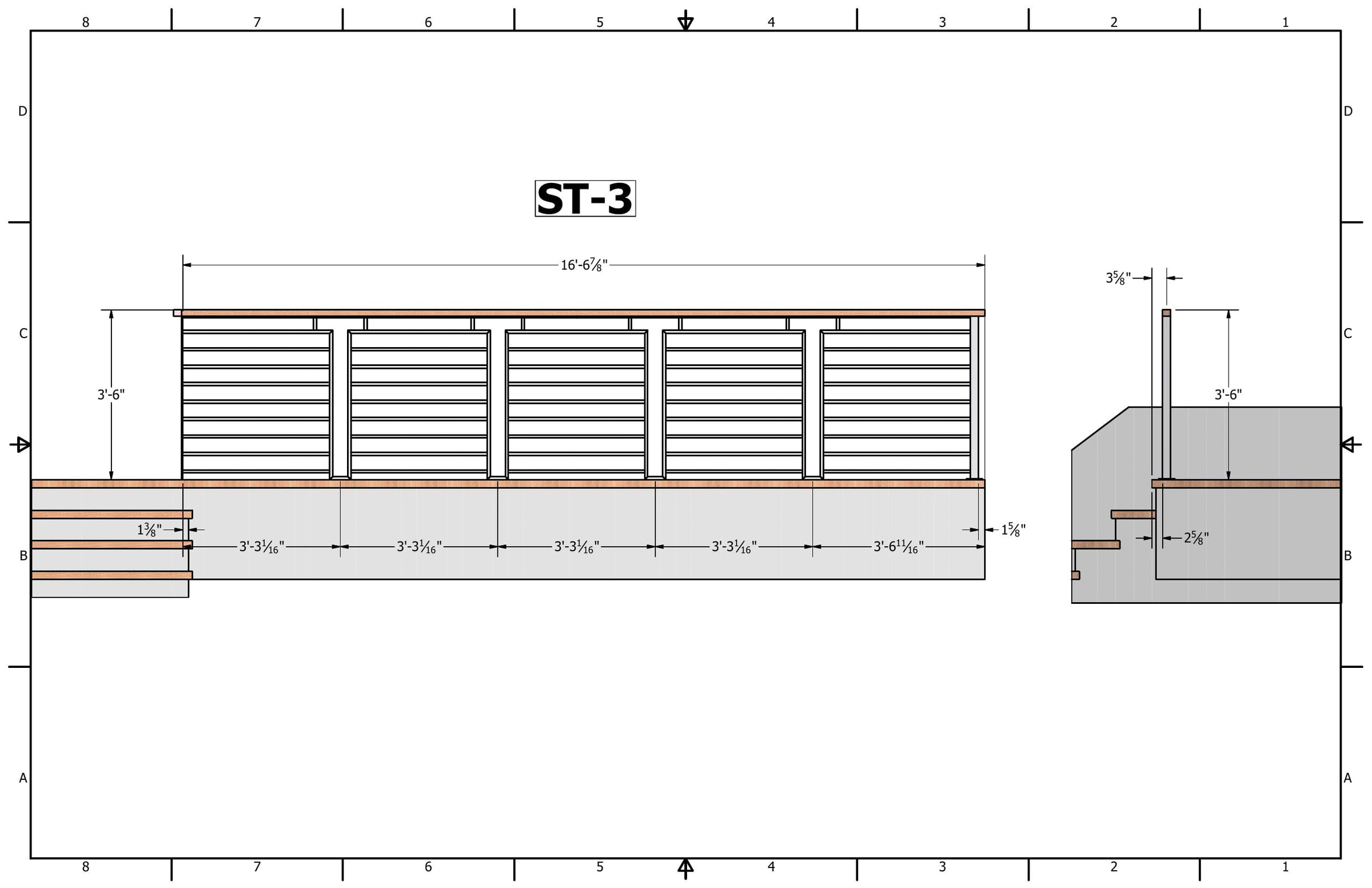

Installation drawings · 7 sheets
Documentation
Installation drawings shown.
Every project ships with a complete fabrication-detailed shop drawing package —
base-plate callouts, weld symbols, member-by-member dimensioning, hardware
schedules, and revision-controlled section views. The sheets below are the
installation set the on-site crew worked from.
