Modern residential stair with cable-railing system. Modeled parametrically in Inventor and delivered with a full fabrication drawing package; the installation sheet shown here was the on-site reference.
3D renders · parametric Inventor model
Modeling

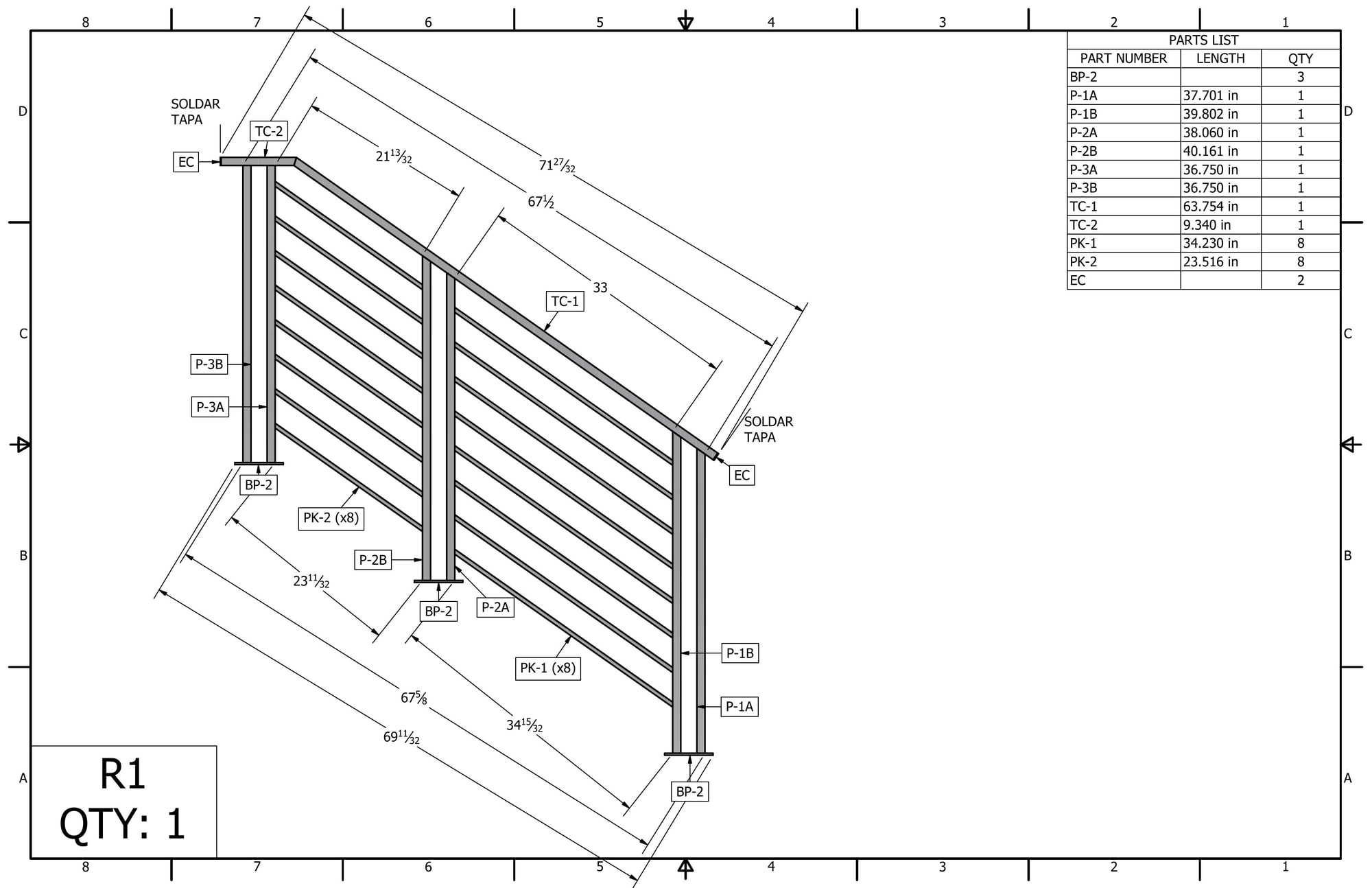

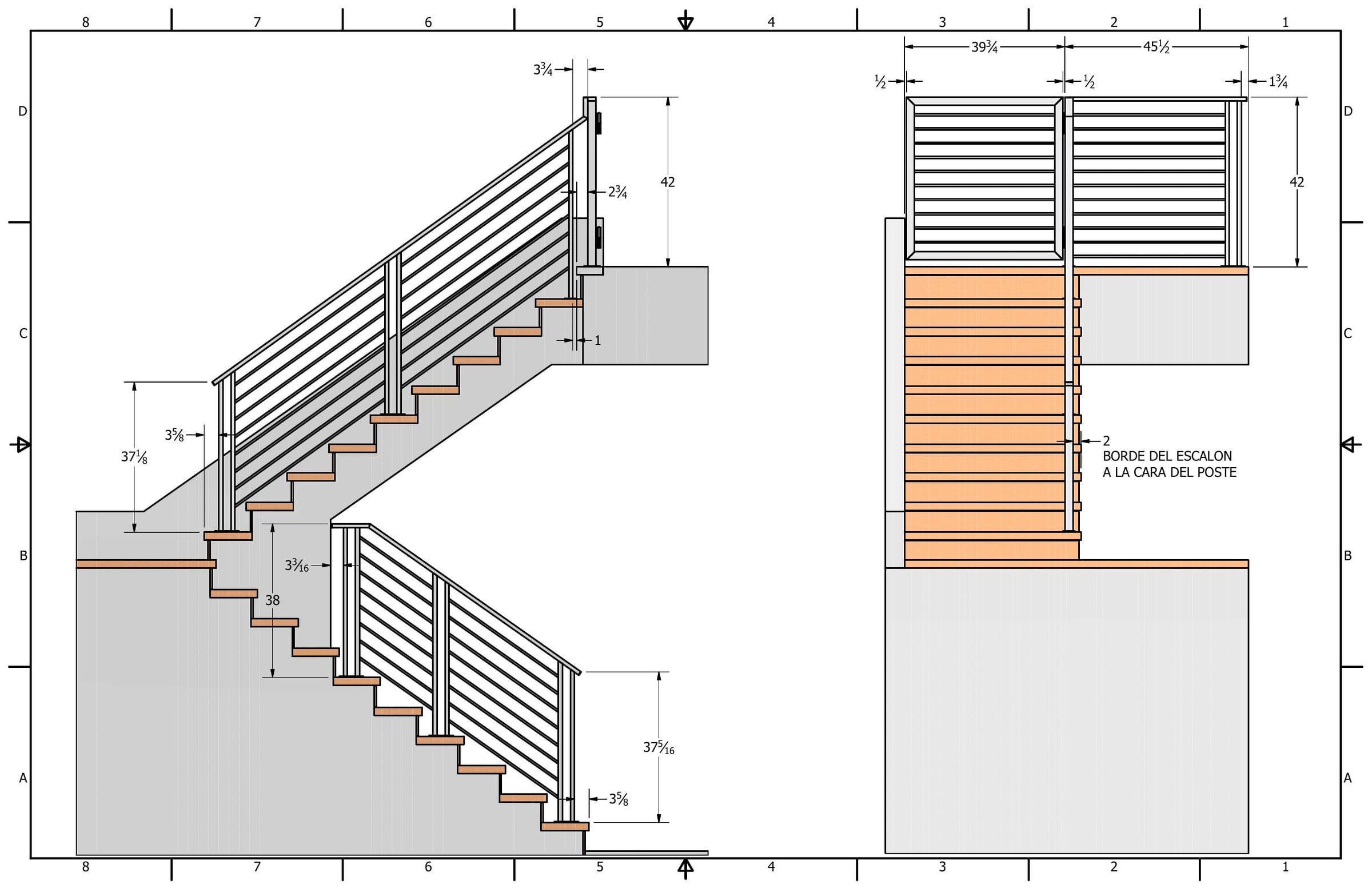

Installation drawings · 1 sheet
Documentation
Installation drawings shown.
Every project ships with a complete fabrication-detailed shop drawing package —
base-plate callouts, weld symbols, member-by-member dimensioning, hardware
schedules, and revision-controlled section views. The sheets below are the
installation set the on-site crew worked from.
