Interior stair and railing with structural and finish details modeled in Inventor. The complete fabrication package was issued to the shop; the installation set is reproduced below.
3D renders · parametric Inventor model
Modeling

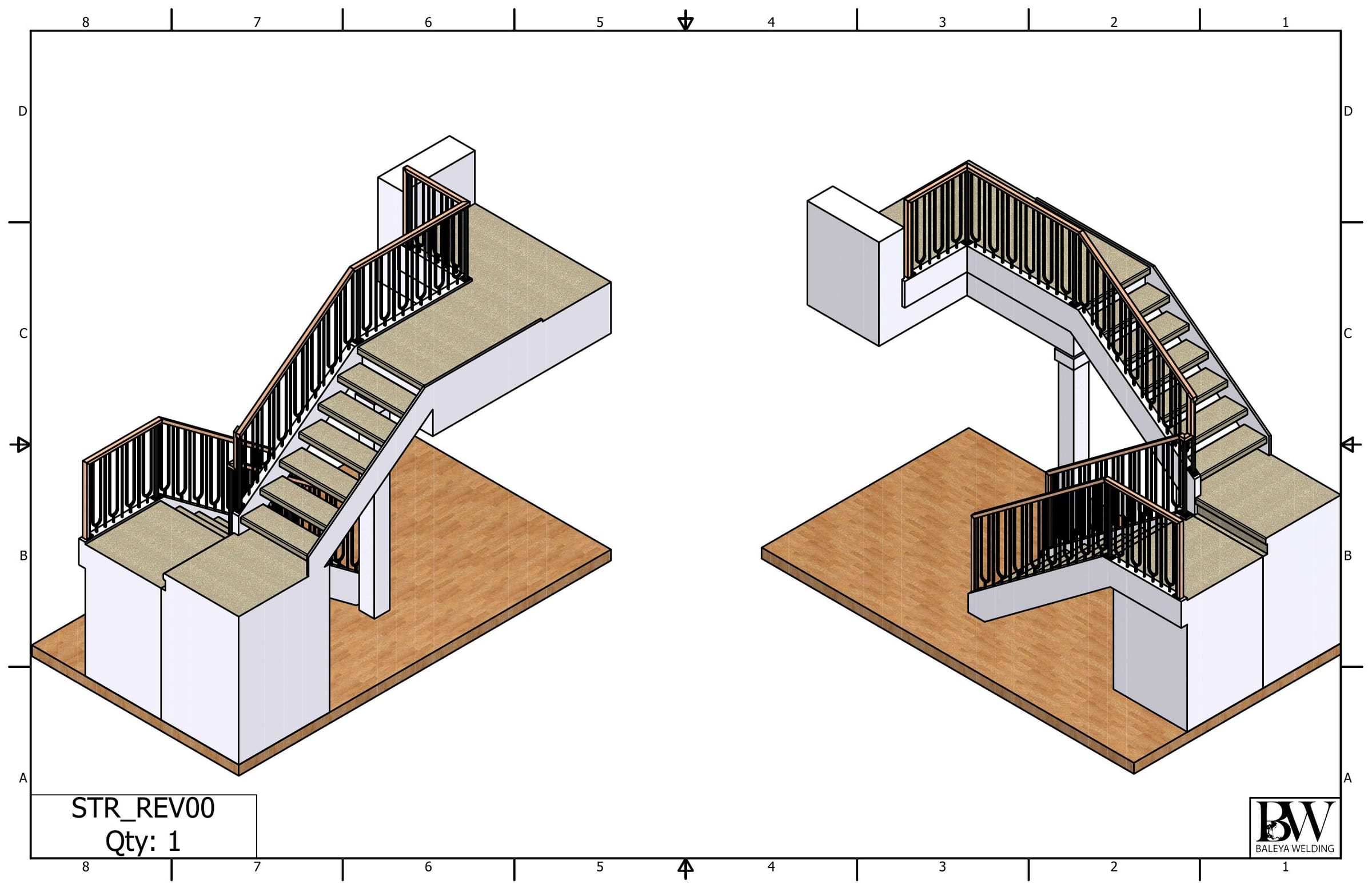

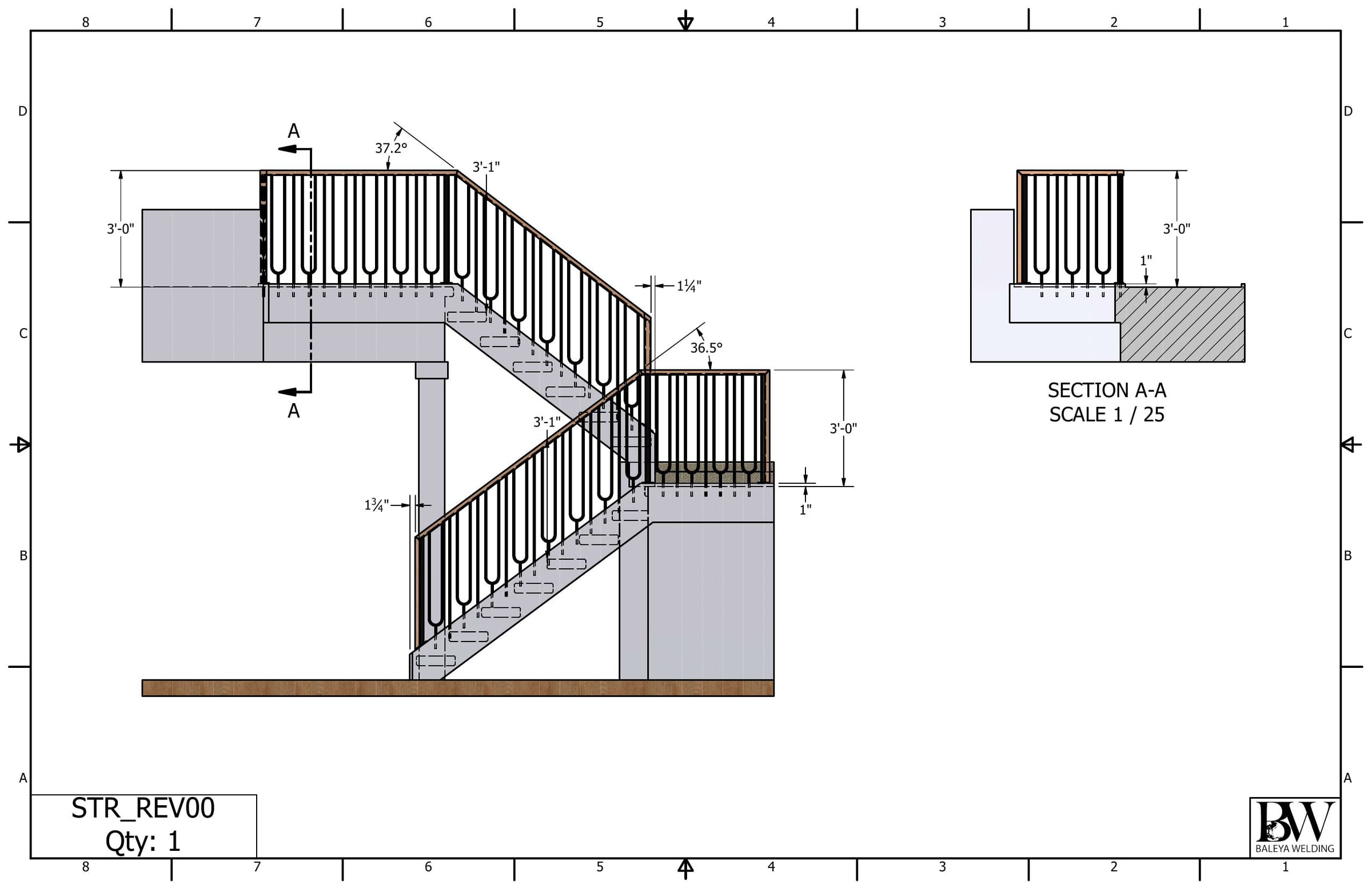

Installation drawings · 2 sheets
Documentation
Installation drawings shown.
Every project ships with a complete fabrication-detailed shop drawing package —
base-plate callouts, weld symbols, member-by-member dimensioning, hardware
schedules, and revision-controlled section views. The sheets below are the
installation set the on-site crew worked from.
